Power Supply

CCTV PS - 12V 15A 18CH

Powering Every Camera. Protecting Every Corner.

The 18-Channel CCTV Power Supply is a professional-grade solution designed to power up to 18 CCTV cameras in your security system. With a robust output of 12V DC and a total current capacity of 15A, this power supply ensures stable and reliable performance for all connected devices. Each of the 18 outputs is individually fused to protect your cameras from electrical surges, ensuring maximum safety and longevity.

Product Images & Video

CCTV PS - 12V 15A 18CH

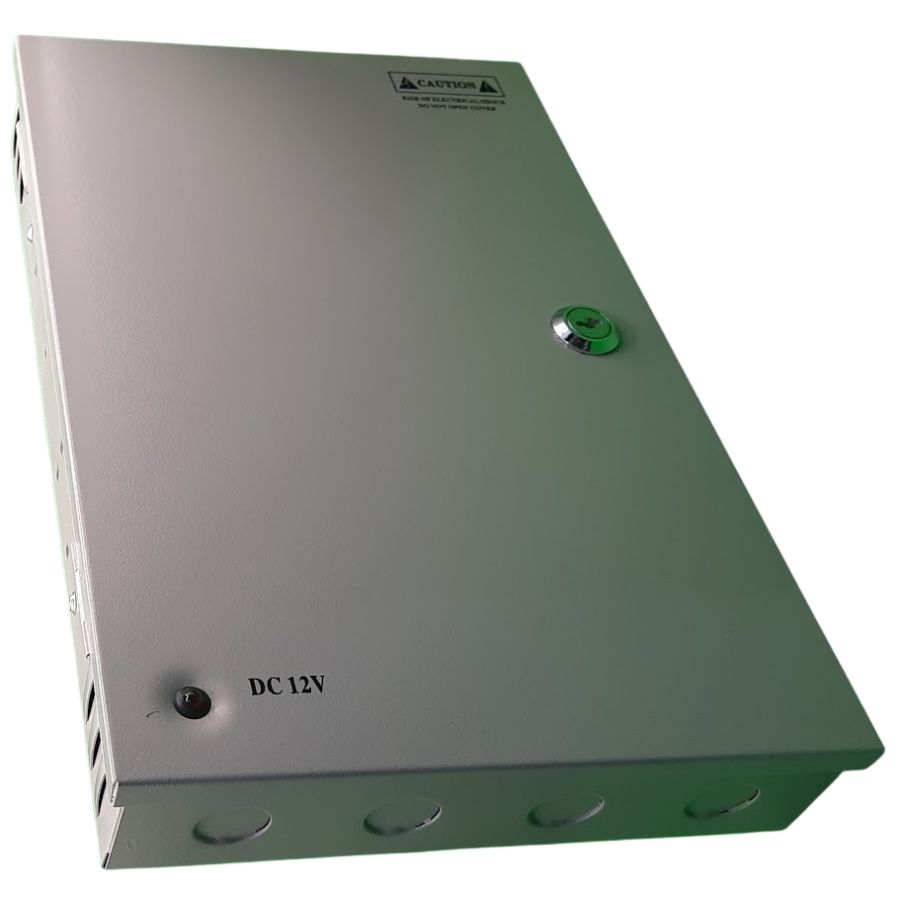

Front view thumbnail
Ports view thumbnail

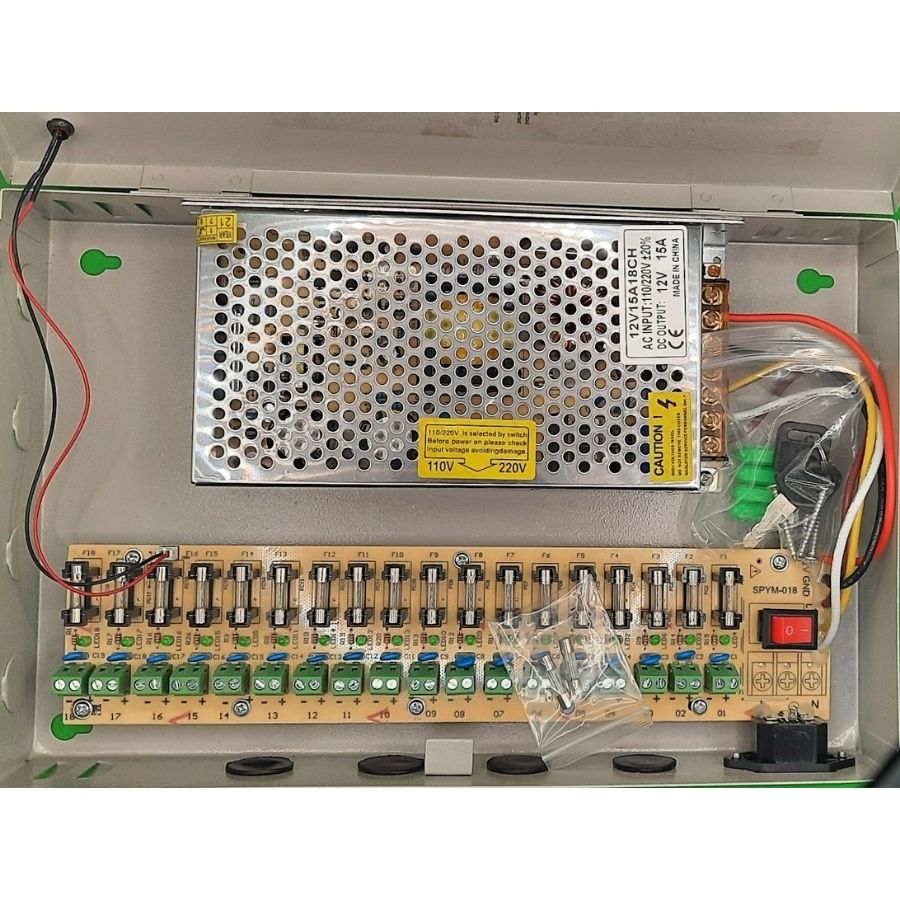

Internals view thumbnail

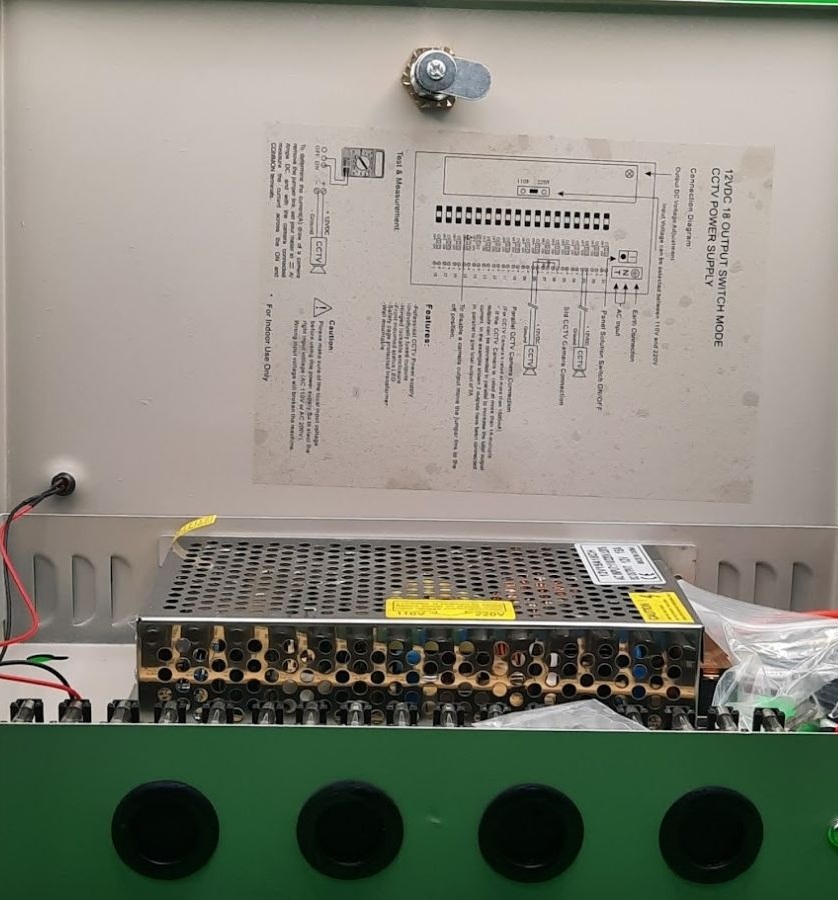

Specifications view thumbnail
Certifications view thumbnail
Packaging view thumbnail
Video
CCTV PS - 12V 15A 18CH

Key Features

High Capacity Output

Provides 12V DC with a total current of 15A, supporting up to 18 CCTV cameras.

Individually Fused Outputs

Protects each camera from electrical faults or surges.

Input Voltage Flexibility

Supports both 110V AC and 220V AC input voltages, making it adaptable to various regions.

Wall-Mountable Design

Compact and secure design for easy installation in any setup.

Safety Features

Includes a safety cage-protected transformer, front-mounted status LED, and lockable enclosure for enhanced security.

Parallel Connection Support

Outputs can be connected in parallel to increase the total output current for high-power cameras.

Technical Specifications

Specification Details
Dimensions HxWxD (Unpacked / Packaged)5.2 x 31.6 x 20.7 cm / 6.2 x 33.5 x 21.3 cm
Weight (Unpacked / Packaged)1.76 KG / 1.89 KG
Power Supply
  • Input: 110V AC / 220V AC (selectable)
  • Output: DC 12V 15A
Interface/Ports18 (individually fused) Channels
Additional Specifications
  • Enclosure Type: Hinged, Lockable
  • Safety Features: Safety cage-protected transformer, front-mounted status LED
  • Mounting Type: Wall-mountable

Applications

  • Home Security Systems – Power multiple cameras for comprehensive home surveillance.
  • Office Surveillance – Ideal for small to medium-sized businesses with multiple cameras.
  • Industrial Monitoring – Suitable for large-scale installations requiring reliable power distribution.
  • Outdoor Camera Systems – Provides safe and stable power for outdoor CCTV setups.

Package Contents

  • 1× 18-Channel CCTV Power Supply Unit
  • User Manual

Safety & Compliance

Important Safety Instructions:

  • Install in a Well‑Ventilated, Dry Location. Keep the power supply away from moisture, heat sources, and enclosed spaces. Proper ventilation prevents overheating and ensures stable, long‑term performance.
  • Disconnect Power Before Wiring. Always turn off the main power and unplug the unit before connecting or removing any camera wires. This prevents electrical shock, short circuits, and damage to connected devices.
  • Use Only the Recommended Input Voltage. Ensure the unit is connected to a stable AC power source within the specified voltage range. Incorrect input voltage can cause overheating, component failure, or fire hazards.

Certifications:

  • CE

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
