Cabinet Models

Network & Audio Cabinets

Product Characteristic

Static loading 800Kg
Width 600, 800mm
Depth 600, 800, 960, 1000mm
Wire groove with cover plus on the two sides in the front
Groove cover can be install and uninstall quickly and easily to maintain
Interior space can reach 740mm max.
Optional wide board to put non-standard server and other equipment
19" can be updated to 23" , 25" , 27" (as demand)

Material: SPCC quality cold rolled steel,
Thickness: Square hole strips 2.0mm, other 1.2mm
Surface finish: degrease, acid picking, rust prevention and parkerizing pure water cleaning, static electricity plastic painting

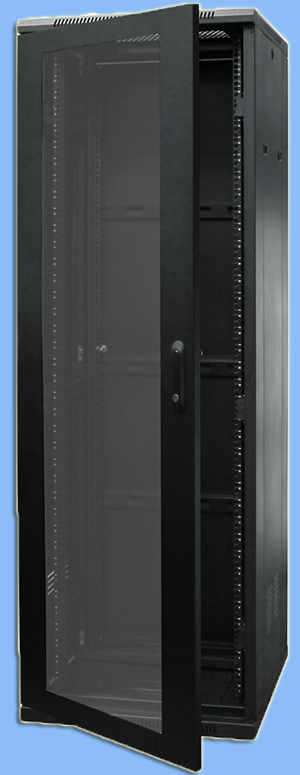

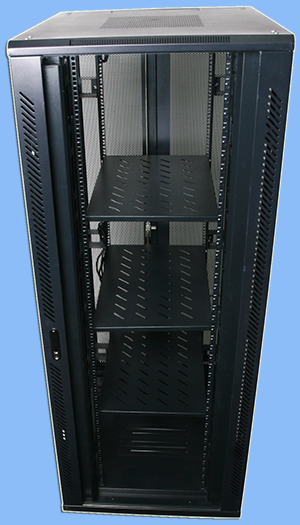

Model	KTC - 42U
Width	800
Depth	800
Height	2100
Description	Trolly type with fan & P.D.U-2 SHLF
Packing	Un Assembled
Volume	0.46713

Product Characteristic

Static loading 800Kg
Width 600, 800mm
Depth 600, 800, 960, 1000mm
Wire groove with cover plus on the two sides in the front
Groove cover can be install and uninstall quickly and easily to maintain
Interior space can reach 740mm max.
Optional wide board to put non-standard server and other equipment
19" can be updated to 23" , 25" , 27" (as demand)

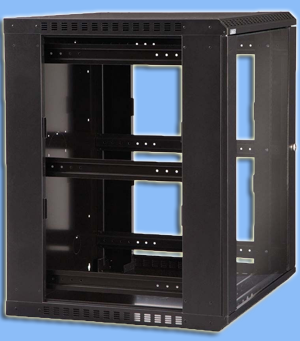

KTC - 15 U

Model	KTC - 15U
Width	600
Depth	550
Height	770
Description	Wall mounted - double section/fan&P.D.U
Packing	Assembled
Volume	0.261

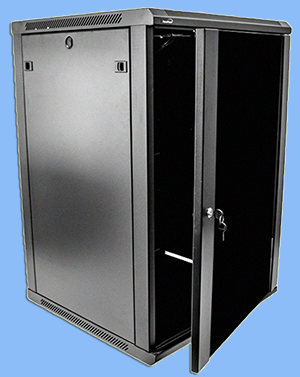

KTC - 18 U

Model	KTC - 18U
Width	600
Depth	600
Height	770
Description	Floor mount with Fan&P.D.U
Packing	Un Assembled
Volume	0.220754

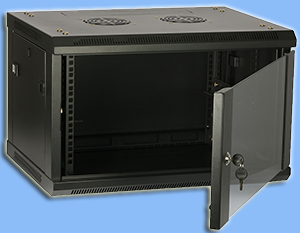

KTC - 6 U

Model	KTC - 6U
Width	600
Depth	450
Height	350
Description	Wall mount - with FAN
Packing	Assembled
Volume	0.0978

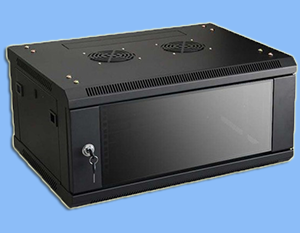

KTC - 4U

Model	KTC - 4U
Width	600
Depth	450
Height	250
Description	Wall mount
Packing	Assembled
Volume	0.0702

Product information

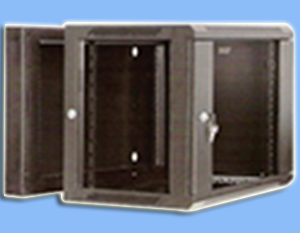

Double section wall mount rack.
Frame structure, max loading 60kg.
The Frame Can Bemoved According To Requirement.
Wall and stand installation type, optional caster and support feet for stand installing.
Quick open side door with lock easy to install and maintain, back door can choose right or left close
Top and bottom wire path.
Optional 120mm axial motor 1 piece or 2 pieces.

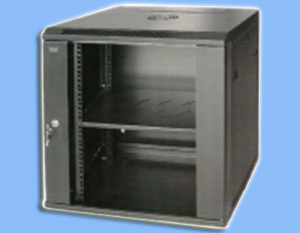

Model	KTC - 12U
Width	600
Depth	150
Height	600
Description	Wall mount
Packing	Assembled
Volume	0.05

Product information

One section wall mount rack.
Frame structure, max loading 60kg.
The Frame Can Bemoved According To Requirement.
Wall and stand installation type, optional caster and support feet for stand installing.
Quick open side door with lock easy to install and maintain.
Top and bottom wire path.
Optional 120mm axial motor 1 piece or 2 pieces.
Can be shiped as assembled or unassembled.
Can be do flat packing as customer require.

Model	KTC - 9U
Width	600
Depth	450
Height	480
Description	Wall mount - with fan&P.D.U
Packing	Assembled
Volume	0.134

Product information

Elegance look,profound technical, precise dimension, with modern taste.
Maximum loading 800kg.
Wire path on the top and bottom can be closed.
Install caster and support feet at the same time.
Optional bottom seat for stable stand, bottom wiring, bottom cold ventilation.
Side door and rear / front door can be taken down easily.
Can be customized to individual requirements.
The Frame Can Bemoved According To Requirement, "U" Was Marked in The Frame.
Detachable composite structure, more convenient for being shipped.

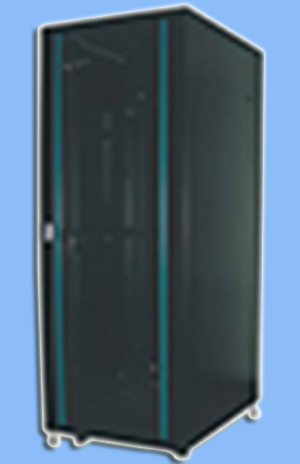

Model	KTC - 32U
Width	600
Depth	800
Height	1600
Description	Trolly type with fan&P.D.U - 2 SHLF
Packing	Un Assembled
Volume	0.3559

Product information

Elegance look,profound technical, precise dimension, with modern taste.
Maximum loading 800kg.
Wire path on the top and bottom can be closed.
Install caster and support feet at the same time.
Optional bottom seat for stable stand, bottom wiring, bottom cold ventilation.
Side door and rear / front door can be taken down easily.
Can be customized to individual requirements.
The Frame Can Bemoved According To Requirement, "U" Was Marked in The Frame.
Detachable composite structure, more convenient for being shipped.

Model	KTC - 27U
Width	600
Depth	600
Height	1400
Description	Trolly type with fan&P.D.U - one SHLF
Packing	Un Assembled
Volume	0.29864
