4K HDMI Extender 60m

Extend HDMI signals up to 60 meters using a single Cat6 cable, delivering 4K video for professional and home theater installations.

Product Images & Video

Video

Front view of DVI Splitter 1x4

Key Features

Long-Distance HDMI Extension

Transmits HDMI audio and video signals over a much greater distance (up to 60 meters / ~197 feet) using a low-cost, easy-to-install Cat5e or Cat6 network cable, far beyond the limits of a standard HDMI cable.

4K Ultra HD Support

Supports high-resolution video up to 3840x2160p (4K) at 30Hz, ensuring sharp and detailed image quality for modern media sources, compatible with the HDMI 1.4b standard.

Deep Color and High Bandwidth

Supports 8/10/12-bit deep color for richer, more nuanced visuals and a high data rate of 3x3.4 Gbps, ensuring a stable and high-quality signal transmission for demanding content.

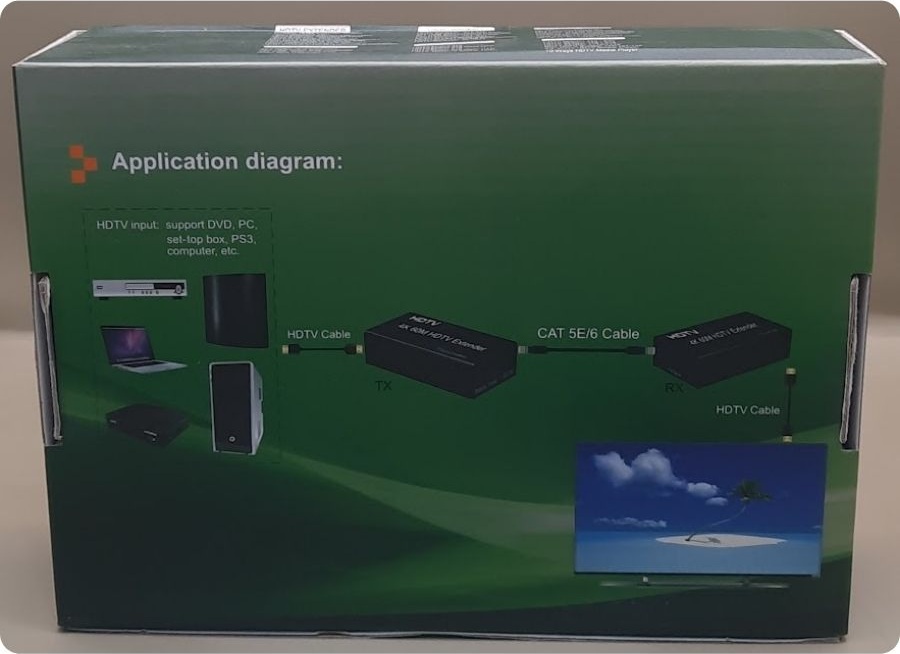

Two-Unit System (Tx & Rx)

Consists of a compact Transmitter (TX) unit that connects to your video source and a Receiver (RX) unit that connects to your display, providing a dedicated and reliable extension solution.

Technical Specifications

Specification	Details
Dimensions HxWxD (Packaged)	5.4 x 20.2 x 14.7 cm
Weight (Packaged)	370g
Compatibility	HDMI sources (DVD/Blu-ray players, PCs, set-top boxes, gaming consoles like PS3/PS4) and HDMI displays (TVs, monitors, projectors). Uses standard RJ45 Cat5e/Cat6 cables for extension.
Power Supply	Requires external DC 5V/1A power supply for both the Transmitter (TX) and Receiver (RX) units.

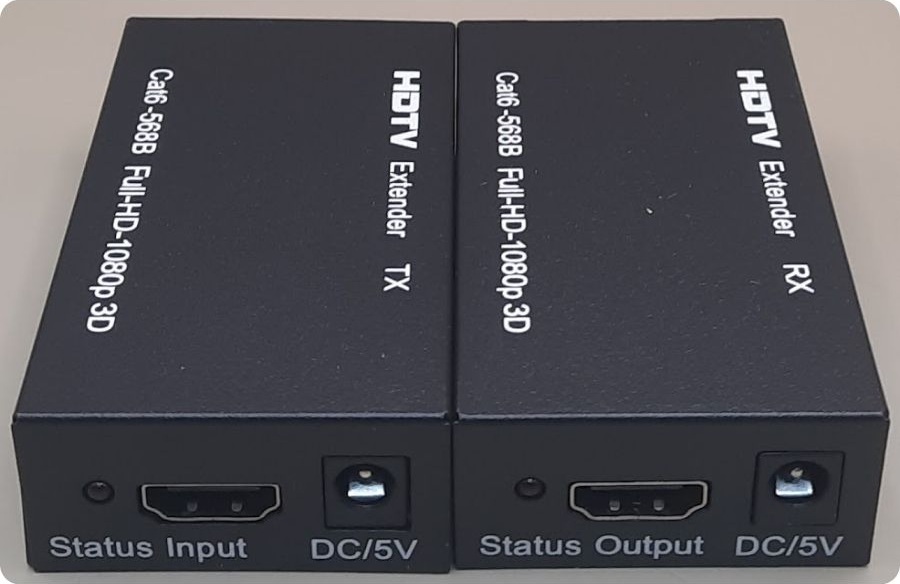

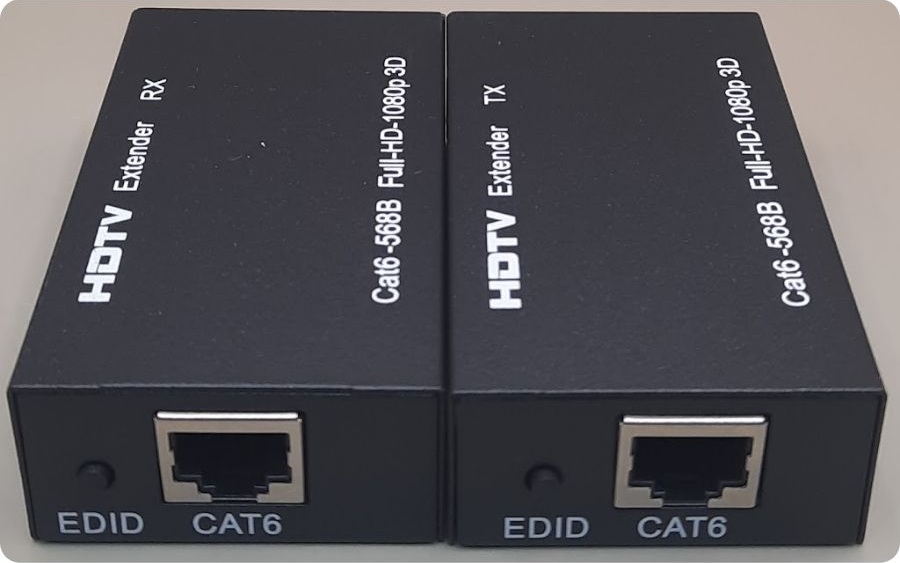

Interface/Ports	TX (Transmitter): HDMI Input, RJ45 Port (for Cat5e/6 cable), DC 5V Power Input RX (Receiver): HDMI Output, RJ45 Port (for Cat5e/6 cable), DC 5V Power Input
Cable Length	Not included. Uses standard Cat5e/Cat6 cable up to 60 meters.
Certifications	CE
Additional Specifications	Maximum Extension Distance: 60 meters (with Cat6 cable)Supported Resolutions: Up to 4K (3840x2160@30Hz) HDMI Standard: HDMI 1.4b Supported Color Depth: 8/10/12-bit Deep Color

Applications

Home Theater Installation – Ideal for in-wall installations where the AV receiver and source devices are in a media closet, and the TV or projector is mounted on a far wall or ceiling, requiring a long, hidden cable run.
Corporate and Conference Rooms – Perfect for boardrooms and meeting spaces where a presentation laptop needs to be connected to a large display on the opposite side of the room, using existing or new in-wall CATx cabling for a clean, professional look.
Digital Signage and Command Centers – Used in commercial settings to place media players or computers in a secure server room while displaying content on monitors located in public areas or control rooms dozens of meters away..

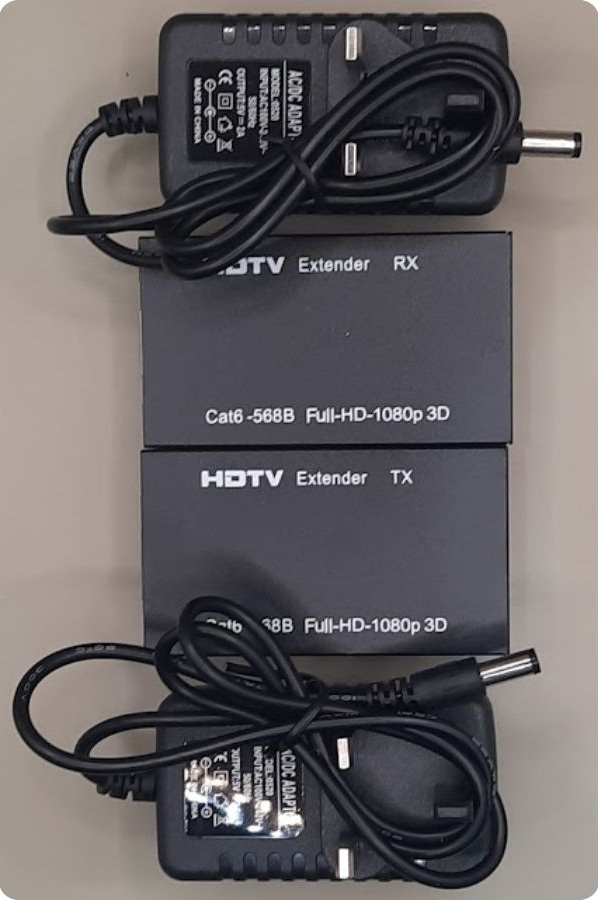

Package Contents

1x HDMI Transmitter (TX) Unit
1x HDMI Receiver (RX) Unit
2x DC 5V/1A Power Adapter

Safety & Compliance

Important Safety Instructions:

Use only the provided or specified DC 5V power adapters.
Ensure proper ventilation around the units.
Do not disassemble the devices.
Use the correct gauge and type of network cable (Cat6 recommended) for the full extension distance.
