4K HDMI Splitter 1x16

Ultra‑Clear 4K, Shared Instantly.

Product Images & Video

Front view of 4K HDMI Splitter 1x16
Front view thumbnail

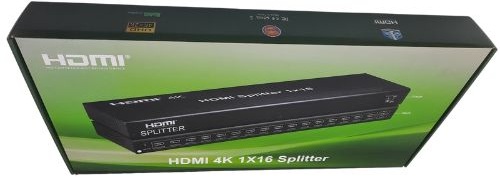

Package view thumbnail

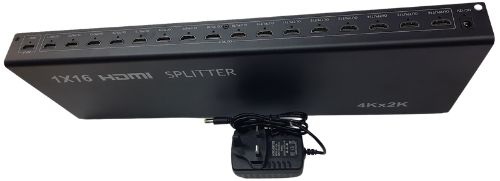

Content view thumbnail

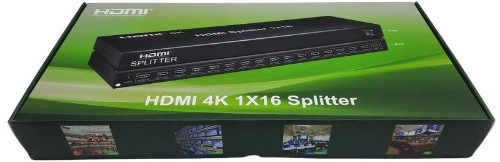

Certifications view thumbnail
Video
Front view of HDMI Splitter 1x16

Key Features

High-Quality Signal Distribution

Splits a single HDMI source to sixteen displays without loss of quality.

4K@30Hz Support

Ensures sharp, detailed visuals for modern displays.

Wide Compatibility

Works with Full 3D content, deep color, and HDCP-compliant devices.

Stable Performance

Includes a power adapter for consistent signal transmission.

Compact and Portable

Easy to carry and install in any setup.

Versatile Use

Ideal for home theaters, classrooms, trade shows, and professional setups.

Technical Specifications

Specification Details
Dimensions HxWxD (Unpacked / Packaged)4.1 x 46.2 x 14.8 cm / 5.9 x 49.3 x 24.7 cm
Weight (Unpacked / Packaged)1.67 KG / 2.60 KG
MaterialMetal & Polymer.
Power Supply
  • Input: 100-240V AC, 50/60Hz
  • Output: 12V DC, 2A
Supported FeaturesFull 3D, Deep Color (8/10/12-bit), HDCP Compliant
Interface/Ports1 HDMI Input, and 16 HDMI Outputs.
Additional Specifications
  • Resolution Support: Up to 4K@30Hz (3840x2160)
  • HDMI Version: HDMI 1.4b
  • Max Baud Rate: 3.4 Gbps
  • Max Bandwidth: 340 MHz

Applications

  • Control Rooms & Security Monitoring – The 4K HDMI Splitter 1×16 is ideal for surveillance environments where multiple screens must display the same real‑time feed. From NVR systems to command centers, it ensures crystal‑clear 4K output across up to sixteen monitors without lag or signal loss, making monitoring more efficient and reliable.
  • Digital Signage & Commercial Displays – Perfect for malls, retail stores, hotels, and airports, this splitter allows a single media source to broadcast ads, menus, or announcements to 16 screens simultaneously. It keeps branding consistent, reduces hardware costs, and delivers sharp 4K visuals that attract customer attention.
  • Training Rooms, Auditoriums & Presentations – In educational and corporate environments, the splitter ensures every participant sees the same high‑quality content, no matter where they sit. It’s ideal for large classrooms, seminar halls, and auditoriums where multiple displays are needed to maintain visibility and engagement.

Package Contents

  • 4K HDMI 1x16 Splitter Main Unit
  • DC 5V/2A Power Adapter

Safety & Compliance

Important Safety Instructions:

  • Use only the provided 5V DC power adapter.
  • Ensure proper ventilation around the unit.
  • Do not stack other equipment directly on top of the splitter.
  • Disconnect power before making or changing connections.

Certifications:

  • CE
  • FCC
  • RoHS (Restriction of Hazardous Substances) compliant, meets EU standard for limiting the use of specific hazardous materials in electrical and electronic equipment.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
