DVI Splitter 1x2

Duplicate a single DVI video source to two displays simultaneously, ideal for presentations and digital signage with DVI-based systems.

Product Images & Video

Video

Front view of DVI Splitter 1x2

Key Features

1-to-2 DVI Signal Distribution

Takes one DVI input and duplicates the digital video signal to two identical DVI outputs, allowing the same content to be shown on two monitors or projectors.

High-Resolution Support

Supports high-definition video signals, ensuring clear picture quality for presentations, training materials, and content display on compatible DVI displays.

Simple Plug-and-Play Operation

Designed for ease of use; simply connect the source and displays, and provide power. No software or complicated configuration is required.

Active Signal Boosting

As a powered splitter, it regenerates the DVI signal, helping to maintain signal integrity and allowing for potentially longer cable runs to the displays without degradation.

Technical Specifications

Specification	Details
Dimensions HxWxD (Unpacked/Packaged)	2.7 x 17.8 x 7.2 cm / 5.5 x 23 x 16.6 cm
Weight (Unpacked/Packaged)	350g / 510g
Material	Metal & Polymer.
Compatibility	Devices with DVI output (computers, media players) and DVI input (monitors, projectors).
Power Supply	Requires external power via included DC 5V power adapter.

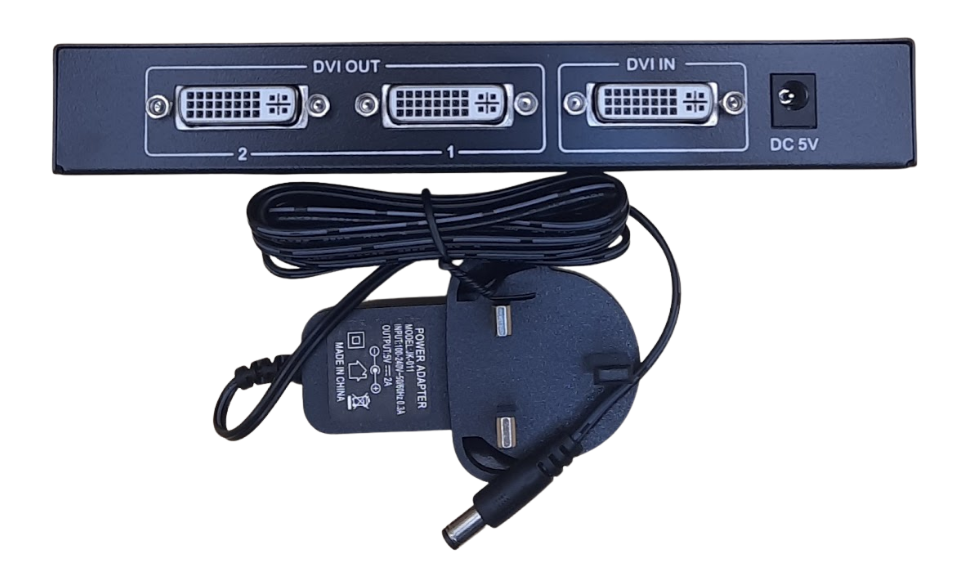

Interface/Ports	1 x DVI Input (Female), 2 x DVI Output (Female), and DC 5V Power Input.
Certifications	CE & FCC compliant.
Additional Specifications	Type: 1x2 Active DVI Splitter.

Applications

Business Presentations and Training – Perfect for conference rooms or classrooms where a presenter needs to show their laptop screen on both a main projector and a secondary monitor for themselves or attendees.
Point-of-Sale or Information Displays – Useful in retail or public spaces to duplicate informational or promotional content from a single media player onto two DVI monitors placed in different areas.
Basic Multi-Monitor Setup for Legacy Systems – Allows a desktop computer with a single DVI output to drive two DVI monitors simultaneously, creating an extended or duplicated desktop workspace.

Package Contents

DVI 1x2 Splitter Main Unit
DC 5V Power Adapter

Safety & Compliance

Important Safety Instructions:

Use only the provided 5V DC power adapter.
Ensure the splitter is placed on a stable, flat surface with adequate ventilation.
Do not stack other equipment on top of it.
Disconnect power before making connections.
