4K HDMI Splitter 1x4

Distribute one 4K HDMI source to four displays simultaneously, perfect for digital signage, presentations, and multi-room viewing.

Product Images & Video

Video

Front view of DVI Splitter 1x4

Key Features

1x4 Distribution

Takes a single HDMI input and duplicates the audio/video signal to four identical HDMI outputs, allowing one source to be viewed on multiple screens at the same time.

4K Ultra HD & 3D Support

Supports high-resolution video up to 4K (3840x2160) at 30Hz and is compatible with 3D video formats, ensuring high-quality picture distribution for modern content.

Signal Regeneration

Acts as an active repeater, which cleans and boosts the HDMI signal. This allows for longer cable runs (up to 15m for 4K) to the displays without signal degradation.

High-Fidelity Audio Pass-Through

Supports advanced audio formats including Dolby TrueHD and DTS-HD Master Audio, ensuring immersive lossless sound is delivered to all connected displays or AV systems.

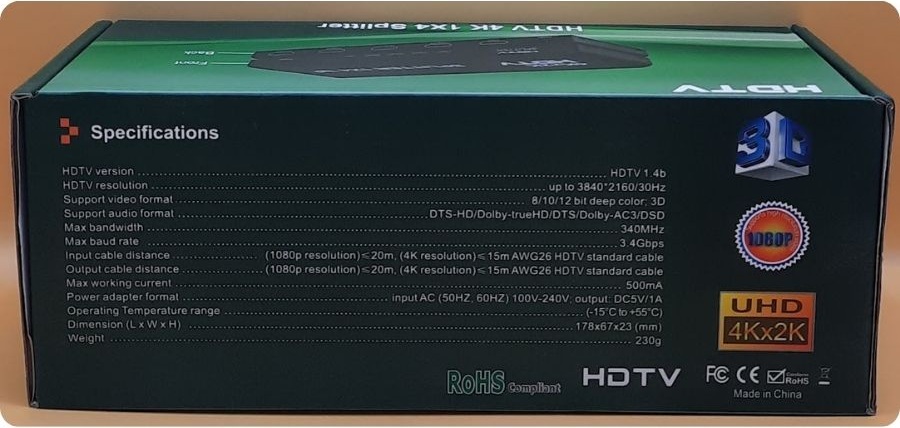

Technical Specifications

Specification	Details
Dimensions HxWxD (Unpacked / Packaged)	2.3 x 17.8 x 6.7 cm / 8.1 x 21.1 x 9.1 cm
Weight (Unpacked / Packaged)	280g / 360g
Material	Metal & Polymer.
Compatibility	HDMI sources (Blu-ray players, set-top boxes, gaming consoles, PCs) and HDMI displays (TVs, monitors, projectors).
Power Supply	Requires external power via included DC 5V/1A power adapter (Input: 100-240V AC).
Interface/Ports	HDMI Input x 1, 4 x HDMI Output x 4, and DC 5V Power Input.
Certifications	CE, FCC, and RoHS Compliant.
Additional Specifications	HDMI Version: 1.4bMax Bandwidth: 340 MHz / 10.2 Gbps Color Depth: 8/10/12-bit Deep Color Max Working Current: 500mA Operating Temperature: -15°C to +55°C Recommended Cable Distance (4K): Input ≤ 15m, Output ≤ 15m (using AWG26 HDMI cable)

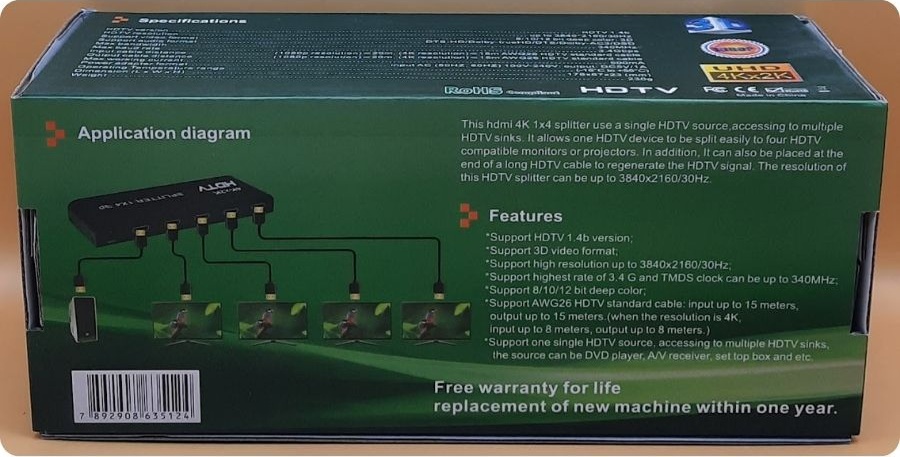

Applications

Digital Signage and Retail Displays – Perfect for businesses to show promotional videos or information from a single media player on multiple screens throughout a store, restaurant, or showroom.
Conference Rooms and Classrooms – Distribute a presentation from a single laptop to multiple large-screen TVs or projectors in a meeting room or training facility, ensuring all attendees have a clear view.
Sports Bars and Entertainment Venues – Connect one set-top box or streaming device to several televisions, allowing patrons to watch the same broadcast event simultaneously across the venue.

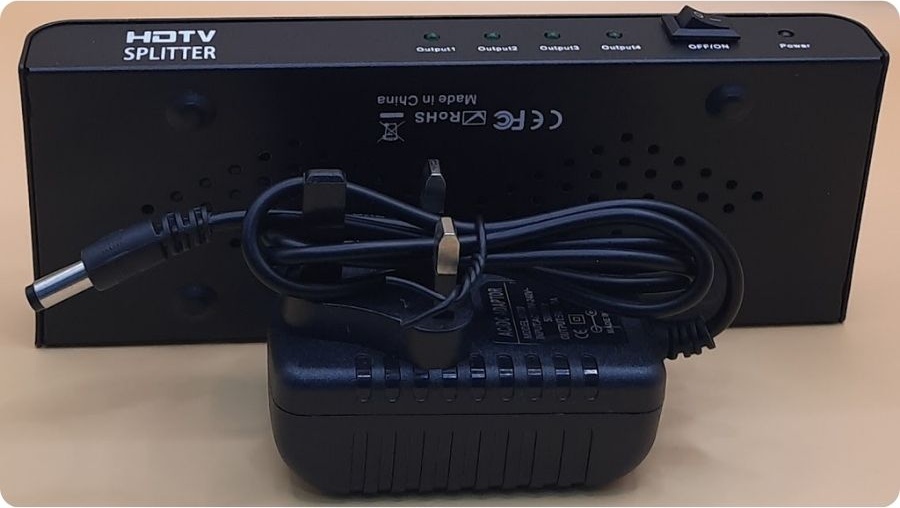

Package Contents

4K HDMI 1x4 Splitter Main Unit
DC 5V/1A Power Adapter

Safety & Compliance

Important Safety Instructions:

Use only the provided 5V DC power adapter.
Ensure proper ventilation around the unit.
Do not stack other equipment directly on top of the splitter.
Disconnect power before making or changing connections.

Certifications:

CE
FCC
RoHS (Restriction of Hazardous Substances) compliant, meets EU standard for limiting the use of specific hazardous materials in electrical and electronic equipment.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
