DVI 24+1 Male to HDMI Female Adapter (270°)

A compact 270° DVI‑to‑HDMI adapter designed for tight‑space installations, delivering seamless digital video conversion with a secure, angled fit.

Product Images & Video

DVI 24+1 Male to HDMI Female Adapter (270°)

DVI 24+1 Male to HDMI Female Adapter (270°)

Key Features

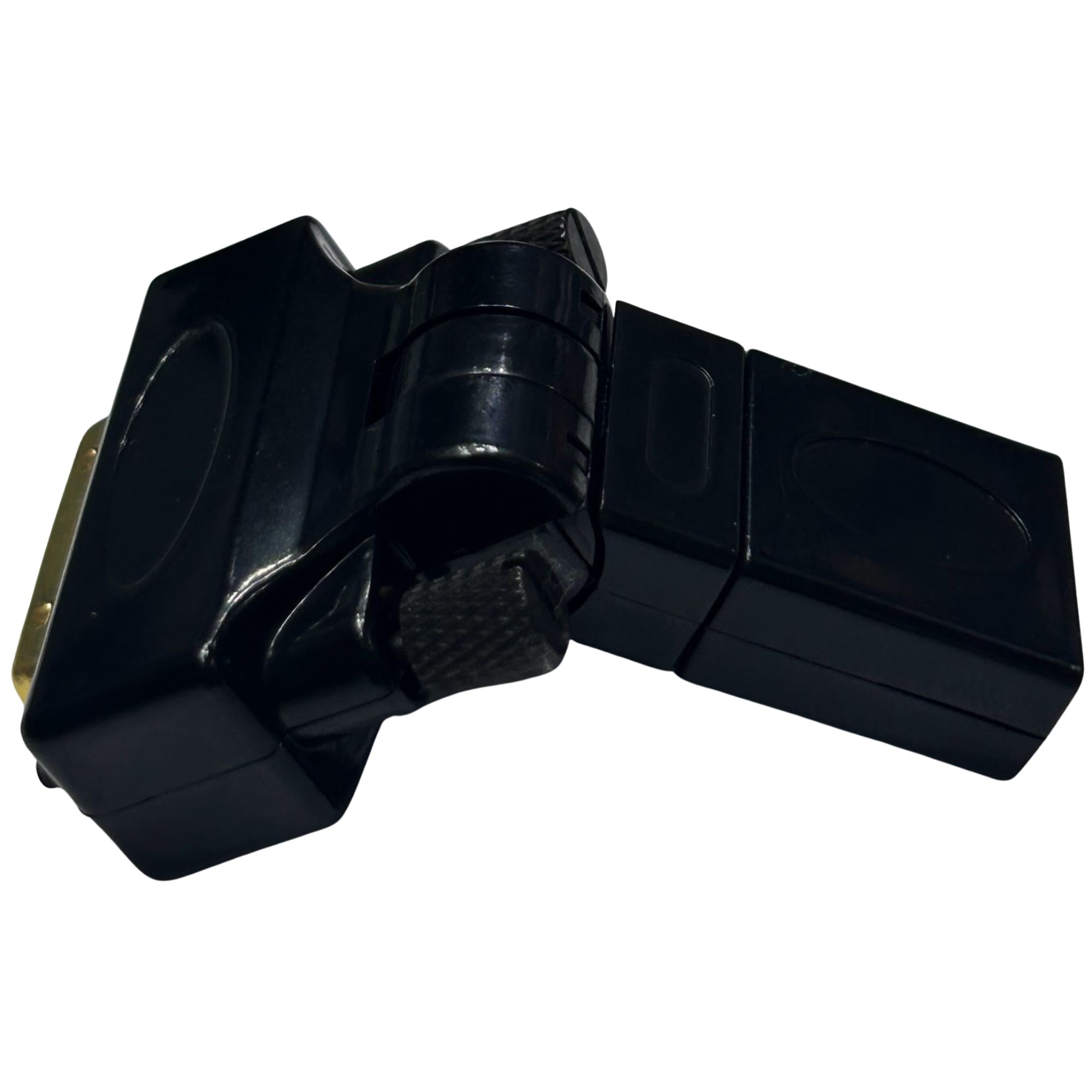

270° Right-Angle Space Optimization

Engineered with a precise 270° upward-angled layout to facilitate clean cable routing in restricted setups. Perfect for connecting equipment behind wall-mounted displays, inside shallow server enclosures, or close to structural barriers without causing destructive cable bends or strain on your ports.

DVI-D Dual Link (24+1 Pin) Compatibility

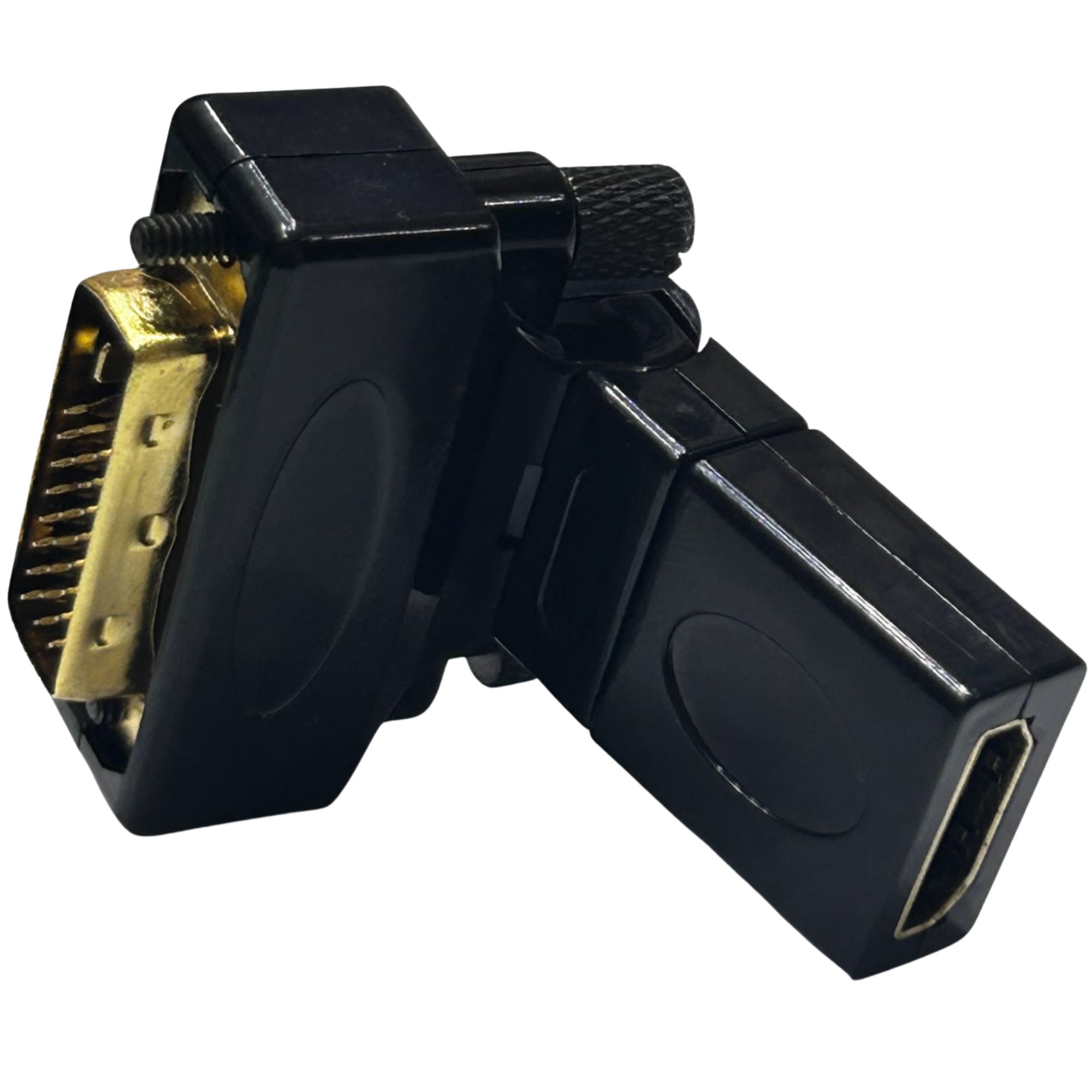

Seamlessly bridges the gap between older and newer display technologies by adapting a DVI-D Dual Link (24+1 pin) male source output into a standard HDMI female input port. Fully supports digital video pass-through from legacy desktop computer towers, graphics cards, and media players to modern HDMI displays.

Secure Dual Thumb-Screw Locking Mechanism

Features integrated, hand-tightened locking screws with a standard 3.2 cm pitch spacing to guarantee an unyielding physical connection. This vibration-proof design completely eliminates accidental signal drops, screen flickering, or hardware disconnects due to equipment movement or cable weight.

Ultra-Compact and Ultra-Lightweight Build

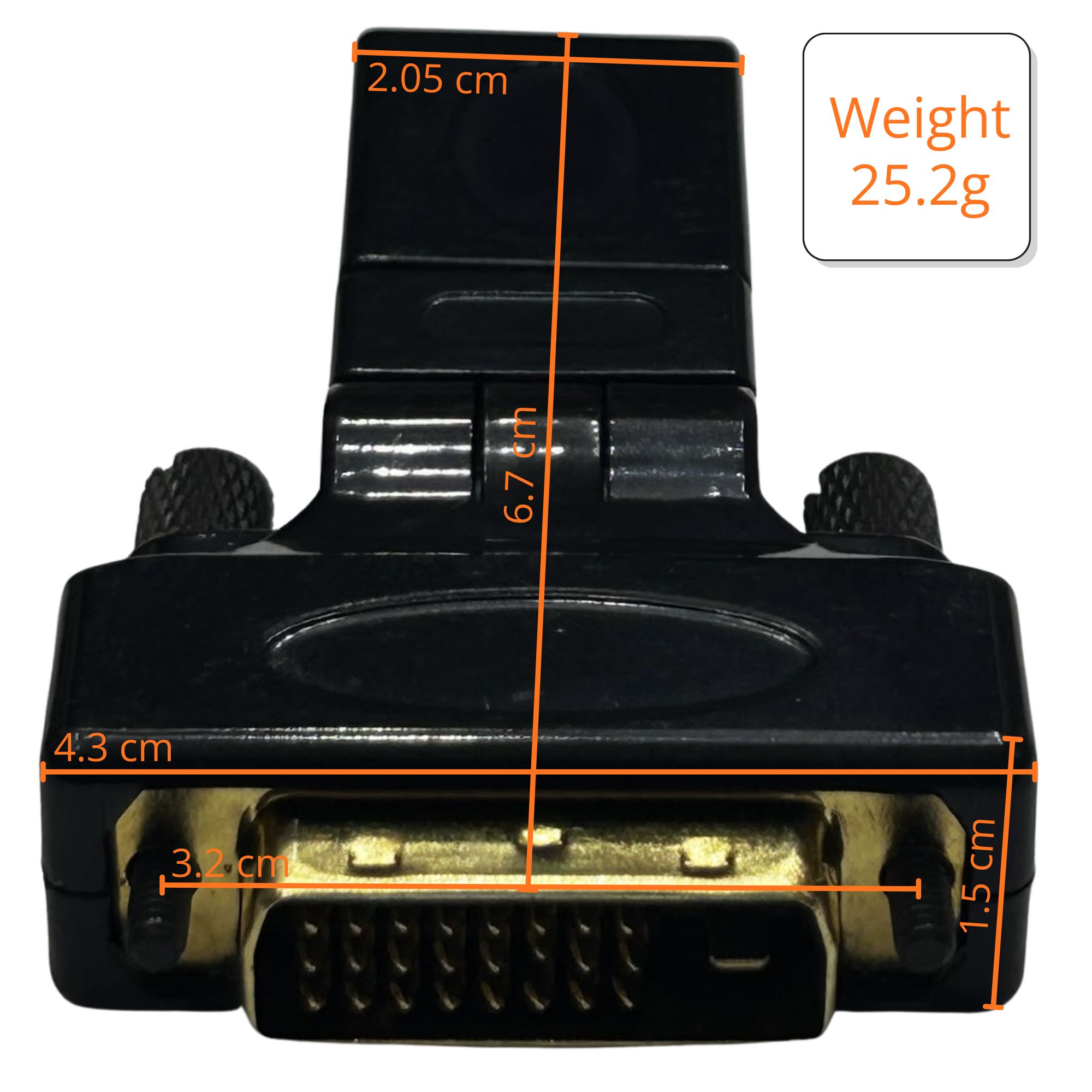

Designed with a highly portable, low-profile footprint measuring 4.3x6.7 cm with a slim connector depth down to 1.5 cm, weighing just 25.2 g. Its compact form factor inserts cleanly into dense multi-port graphics card panels without blocking adjacent video outputs or interfaces.

Premium Signal Integrity and Durability

Equipped with corrosion-resistant, high-conductivity gold-plated connectors that ensure immaculate video synchronization and long-term transmission reliability. The robust molded housing protects internal digital traces against structural fatigue, daily wear, and harsh workplace environments.

Instant Driver-Free Video Pass-Through

Offers 100% passive, pure hardware-based plug-and-play functionality with zero software installations, external power cables, or drivers required. Supports crisp digital video resolutions up to Full HD 1080p. (Note: The DVI standard carries video signals only; a separate auxiliary or optical cable is required for audio).

Technical Specifications

Specification	Details
Product Model	DVI-D Dual Link to HDMI Female (270° Right-Angle)
Connector A (Input/Source)	DVI-D Dual Link (24+1 Pin) Male
Connector B (Output/Display)	HDMI Female (Type A)
Orientation Angle	270° Upward / Right-Angle
Maximum Resolution	Full HD 1080p (1920x1080) @ 60Hz / 1920x1200
Bandwidth / Architecture	Passive Digital Pass-Through
Product Length	6.7 cm
Product Width	4.3 cm
Locking Screw Pitch	3.2 cm (Dual Thumb-Screws)
Connector Profile Depth	1.5 cm
Net Item Weight	25.2 g
Material Build	High-Impact Molded ABS Shell, Gold-Plated Contacts
Audio Support	No (DVI standard is strictly Video-Only)

Applications

Wall-Mounted Display Installations – Allows seamless connection of slim-profile LED TVs, commercial digital signage, and hospitality screens mounted flat against walls, preventing bulky HDMI cables from bending against the wall or pushing the screen out of alignment.
Cramped Office Desk Setups – Perfect for upgrading office workstations where desktop computer towers or legacy workstations are pushed flush against cubicle walls, saving valuable desk space while maintaining a crisp video connection.
High-Density Server Racks and Enclosures – Ideal for IT data centers and server rooms where legacy servers or KVM switches with DVI outputs must connect to modern HDMI console monitors within shallow, tightly packed equipment racks.
CCTV and Security Control Rooms – Enables neat, space-saving cable management in multi-monitor security matrices, allowing surveillance DVRs/NVRs to route video lines upward efficiently without cluttering the back of the monitoring desk.
Retrofitting Conference Rooms & Classrooms – Easily bridges existing ceiling-mounted legacy projectors or media players with newer HDMI structural wall plates or incoming video feeds without needing to re-pull expensive structural cabling.
Multi-GPU Compact Gaming Rigs – Solves spacing conflicts in custom small-form-factor (SFF) computer builds by routing display cables cleanly away from adjacent graphics card ports, chassis fans, or internal structural bars.

Package Contents

1x DVI 24+1 Male to HDMI Female Adapter (270°).

Safety & Compliance

Important Safety Instructions:

Verify Pin Configuration Prior to Installation: Ensure your video source output is a matching DVI-D Dual Link (24+1 pin) digital port. Attempting to force this connector into a DVI-I (24+5 pin) or DVI-A analog interface can permanently bend or break the pins, destroying the adapter or the host graphics port.
Check Spatial Orientation (270° Angled Layout): Confirm the physical alignment of your source port before purchasing or installing. This adapter features a fixed 270° upward-angled layout; verify that routing your HDMI cable in this specific direction will not block neighboring motherboard components, power inputs, or chassis walls.
Power Off Equipment During Connection: Always turn off and unplug both your computer/DVR source and the display monitor before attaching or detaching the adapter. Hot-plugging hardware pass-through devices into live ports can occasionally cause minor electrical arcs that risk damaging sensitive internal graphics chipsets.
Hand-Tighten Thumbscrews Only: Secure the adapter to your DVI port using only your fingers on the integrated dual thumbscrews. Do not use pliers, screwdrivers, or mechanical tools to tighten the screws, as excessive torque can crack the ABS plastic housing or strip the internal threads of your graphics card.
Avoid Excessive Structural Tension: Do not pull, twist, or place heavy physical loads on the connected HDMI cable. Severe downward pressure or sharp tugs on the cable line can warp the internal gold-plated contacts or crack the host circuit board's video interface.
Operate in Dry, Ventilated Environments: Keep the adapter free from moisture, liquid splashes, and excessive dust accumulation. Avoid using this hardware in high-humidity commercial environments or unventilated, high-heat server enclosures where temperatures exceed standard operating thresholds.
Passive Video Transmission Limitations: This adapter is a purely passive hardware pass-through device and does not process or convert analog signals to digital. It is strictly video-only; a separate dedicated auxiliary, RCA, or optical cable must be deployed to route audio signals independently.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
