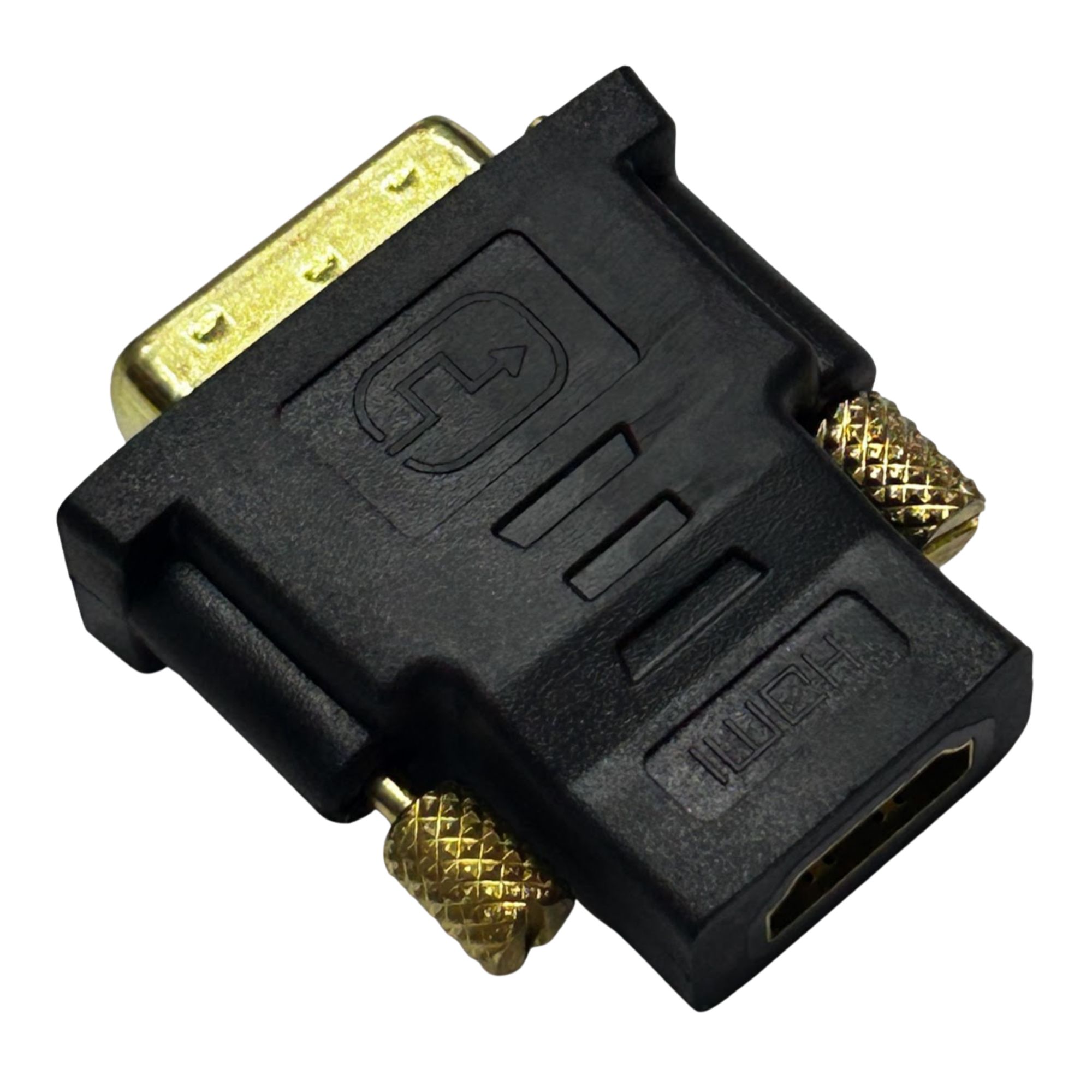

DVI 24+1 Male to HDMI Female Adapter

Provides a seamless, high-performance digital pass-through to instantly connect legacy DVI-D computer towers or graphics cards to modern HDMI display cables without signal degradation.

Product Images & Video

DVI 24+1 Male to HDMI Female Adapter

Key Features

Seamless DVI-D to HDMI Digital Conversion

Effortlessly bridges legacy and modern display architectures by converting a DVI-D Dual Link (24+1 pin) male output source into a standard high-speed HDMI female input port. Delivers high-performance digital pass-through directly from desktop computer towers, legacy graphics cards, and media servers to modern HDMI-equipped monitors or projectors.

Secure Dual-Screw Locking Interface

Engineered with integrated, hand-tightened locking thumbscrews featuring an industry-standard 3.2 cm pitch spacing to guarantee an unyielding, vibration-proof physical attachment. Completely eliminates sudden signal dropouts, screen flickering, or hardware disconnects caused by cable weight, heavy equipment vibrations, or accidental tugs.

Ultra-Compact Streamlined Form Factor

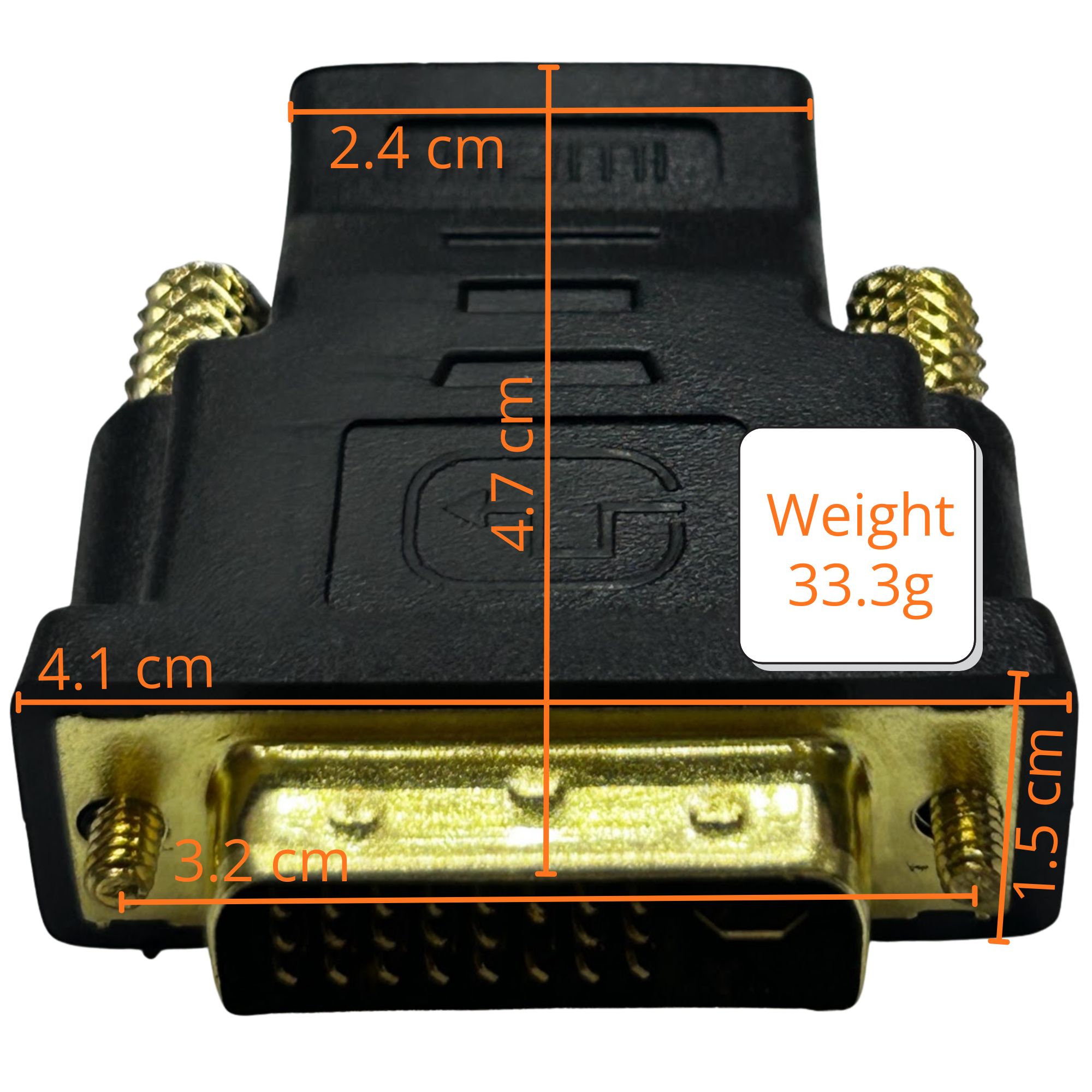

Built with a low-profile, highly portable footprint measuring 4.1x4.7 cm with a main body width of 2.4 cm and an insertion depth of just 1.5 cm. This compact, straight pass-through design ensures a clean physical fit on dense multi-port graphics card panels without obstructing adjacent video interfaces or cooling ventilation paths.

Premium Corrosion-Resistant Signal Path

Features uniform, high-conductivity gold-plated connectors that effectively guard against oxidation, atmospheric moisture, and surface rust over long-term commercial use. Maintains pristine digital video synchronization, lower contact resistance, and consistent Full HD 1080p signal clarity.

Heavy-Duty Protective Molded Housing

Enclosed in a rugged, high-impact molded protective shell weighing 33.3 g that isolates internal wiring traces against structural fatigue, daily operational wear, and harsh workplace handling. Built to survive repeated insertions and demanding commercial deployments in enterprise environments.

Instant Driver-Free Hardware Connection

Offers immediate, 100% passive plug-and-play functionality with zero software installations, external power supplies, or driver configurations required. Supports crisp digital video resolutions up to Full HD 1080p (1920x1080) at 60Hz. (Note: The DVI standard carries digital video data only; an independent auxiliary or optical cable line must be run to route audio signals).

Technical Specifications

Specification	Details
Product Model	DVI-D Dual Link to HDMI Female Straight Pass-Through Adapter
Connector A (Input/Source)	DVI-D Dual Link (24+1 Pin) Male
Connector B (Output/Display)	HDMI Female (Type A)
Adapter Orientation	Straight / Inline Pass-Through
Maximum Resolution	Full HD 1080p (1920x1080) @ 60Hz / 1920x1200
Product Length	4.7 cm
Product Width (DVI Port-Side)	4.1 cm
Product Width (HDMI Port-Side)	2.4 cm
Locking Screw Pitch	3.2 cm (Dual Knurled Thumbscrews)
Insertion Profile Depth	1.5 cm
Net Item Weight	33.3 g
Material Composition	High-Impact Molded Shell, Gold-Plated Digital Contacts
Signal Direction	Bi-directional Passive Pass-Through (DVI to HDMI / HDMI to DVI)

Applications

Upgrading Legacy Workstations & PC Towers – Seamlessly connects older desktop computers, dedicated graphics cards, and IT equipment featuring a DVI-D Dual Link (24+1 pin) output directly to modern HDMI-enabled monitors, screens, or displays.
Commercial KVM Switch Integration – Ideal for data centers, network server rooms, and IT control centers where legacy servers or rackmount KVM switches must interface cleanly with newer HDMI console monitors or multi-port switch matrices.
Security & CCTV Monitor Configurations – Perfect for connecting older surveillance DVRs, NVRs, and security video processing boxes to high-definition HDMI monitoring panels, ensuring continuous, stable video feeds for security control rooms.
Conference Room & Classroom AV Retrofits – Simplifies media setups by bridging existing ceiling-mounted legacy projectors or media players with modern HDMI wall plates or local display feeds without needing to re-pull expensive, long-distance structural cabling.
Multi-Display Office Workstations – Allows business offices and corporate workspaces to easily implement dual-monitor or multi-display configurations by utilizing available DVI ports on graphics cards to run modern HDMI desktop displays.

Package Contents

1x DVI 24+1 Male to HDMI Female Adapter.

Safety & Compliance

Important Safety Instructions:

Verify Pin Configuration Prior to Installation: Ensure your video source output is a matching DVI-D Dual Link (24+1 pin) digital port. Attempting to force this connector into a DVI-I (24+5 pin) or DVI-A analog interface can permanently bend or break the pins, destroying the adapter or the host graphics port.
Maintain Straight Cable Alignment: This adapter is a straight, inline pass-through device. Ensure that the connected HDMI cable extends straight out from the port without sharp bends or heavy lateral pulling forces, which can place destructive leverage on the host circuit board's video interface.
Power Off Equipment During Connection: Always turn off and unplug both your computer/DVR source and the display monitor before attaching or detaching the adapter. Hot-plugging hardware pass-through devices into live ports can occasionally cause minor electrical arcs that risk damaging sensitive internal graphics chipsets.
Hand-Tighten Thumbscrews Only: Secure the adapter to your DVI port using only your fingers on the integrated dual knurled thumbscrews. Do not use pliers, screwdrivers, or mechanical tools to tighten the screws, as excessive torque can crack the molded housing or strip the internal threads of your graphics card.
Avoid Excessive Structural Tension: Do not pull, twist, or place heavy physical loads on the connected HDMI cable. The adapter weighs 33.3 g and is built ruggedly, but severe downward pressure or sharp tugs on the cable line can warp the internal gold-plated contacts or damage the connected hardware ports.
Operate in Dry, Ventilated Environments: Keep the adapter free from moisture, liquid splashes, and excessive dust accumulation. Avoid using this hardware in high-humidity commercial environments or unventilated, high-heat server enclosures where temperatures exceed standard operating thresholds.
Passive Video Transmission Limitations: This adapter is a purely passive hardware pass-through device and does not process or convert analog signals to digital. It is strictly video-only; a separate dedicated auxiliary, RCA, or optical cable must be deployed to route audio signals independently.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
