HDMI Adapter M/F (270°)

Delivers an ultra-low-profile connection that redirects your cable path upward to save space behind flat wall-mounted TVs and protect your equipment's HDMI ports from severe bending strain.

Product Images & Video

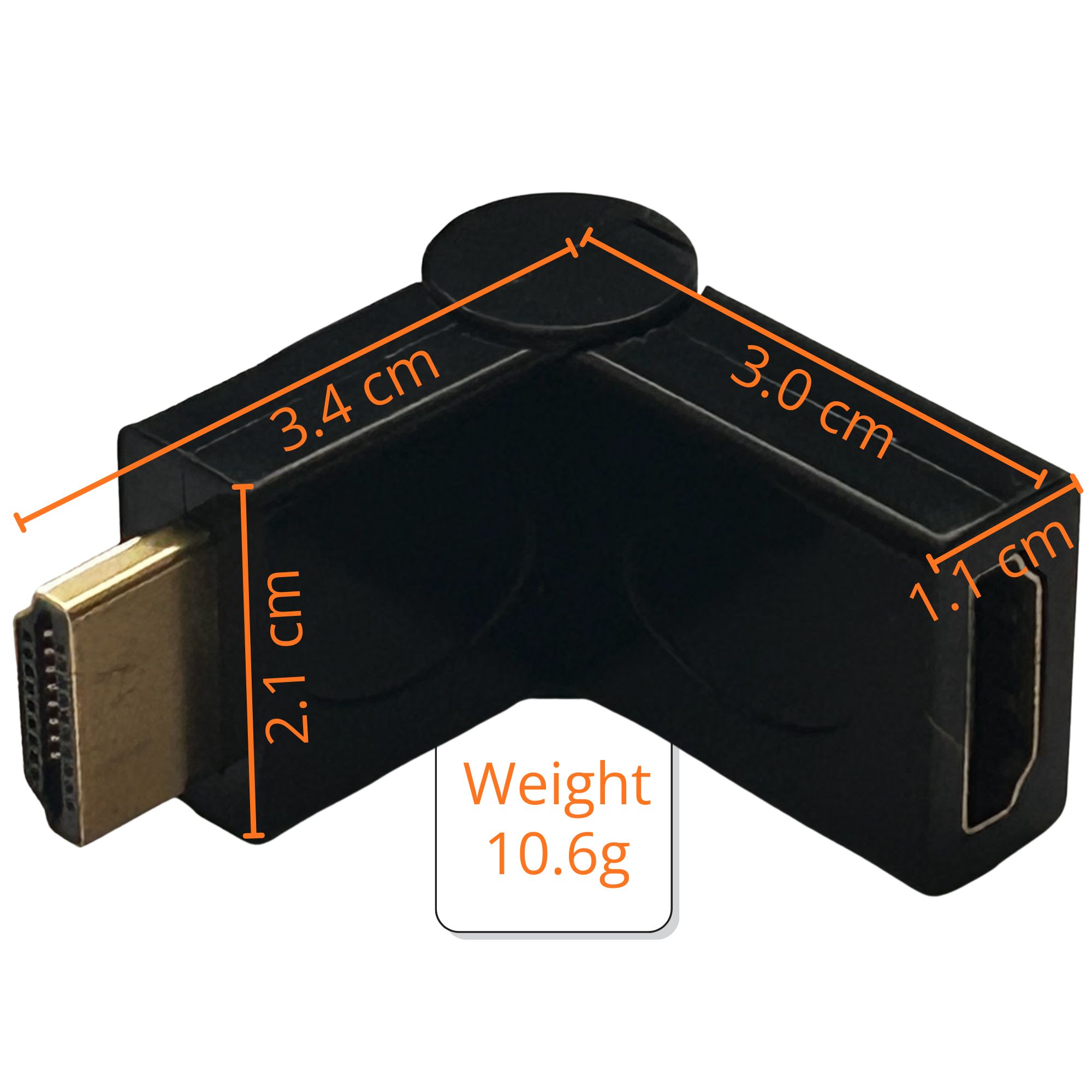

HDMI Adapter M/F (270°)

Key Features

Versatile Bi-Directional Angled Alignment

Engineered with a flexible right-angle design that functions as both a 90° and a 270° connector depending on the host port's orientation. This dual-direction layout allows you to cleanly redirect your cable path either upward or downward, providing the perfect low-profile solution for media streaming sticks, Google Chromecast, Fire TV keys, or thick HDMI cables connecting to tight side-facing or rear display ports.

Low-Profile Space-Saving Profile

Eliminates excessive clearance requirements behind flat wall-mounted LED televisions, slim commercial digital signage setups, and shallow home theater AV cabinets. Allows your entertainment hardware or display screens to sit flush against walls without damaging your wiring.

Essential Hardware Port Protection

Significantly reduces continuous downward pulling weight, cable sag, and severe bending strain typically placed on your equipment's built-in ports by rigid, heavy high-speed HDMI cables. Greatly extends the operational lifespan of internal ports on premium TVs, gaming consoles, and project panels.

High-Speed Audio & Video Pass-Through

Functions as a high-performance, passive hardware converter that preserves complete signal integrity. Seamlessly supports modern high-definition video and audio standards, including ultra-crisp 4K Ultra HD, Full HD 1080p, 3D depth, and uncompressed multi-channel digital audio tracks like Dolby TrueHD and DTS-HD Master Audio.

Corrosion-Resistant Gold-Plated Contacts

Features uniform, high-conductivity gold-plated connectors that actively shield against atmospheric rust and surface oxidation over long-term commercial or residential use. Delivers exceptionally low contact resistance and immaculate digital data synchronization.

Rugged, Driver-Free Plug-and-Play Design

Requires absolutely zero external power cables, driver software installations, or complex hardware configurations. Enclosed in a heavy-duty, high-impact molded protective shell designed to withstand repetitive cable swapping, tight commercial installations, and field operations.

Technical Specifications

Specification	Details
Product Model	HDMI Male to Female Bi-Directional Angled Adapter
Interface Connector A	HDMI Type A Male
Interface Connector B	HDMI Type A Female
Angle Orientation	270° / 90° Fixed Right-Angle (Bi-Directional Pass-Through)
Routing Flexibility	Routes cable Upward or Downward depending on host port orientation
Supported Resolutions	Ultra HD 4K @ 60Hz, 2K, Full HD 1080p, 3D Video
Bandwidth Performance	High-Speed HDMI Pass-Through
Audio Standards	Dolby TrueHD, DTS-HD Master Audio, ARC (Audio Return Channel)
Contact Plating	High-Conductivity Gold-Plated
Housing Material	High-Impact Molded PVC Shell
Signal Architecture	Passive Bi-directional Pass-Through
Driver Requirement	Plug-and-Play (Hardware-Based, No Software Needed)

Applications

Wall-Mounted Flat Screen Televisions – Perfect for ultra-slim LED, OLED, or QLED TV installations mounted flush against a wall, allowing cables to route cleanly upward or downward without bending against the drywall.
Streaming Stick Clearance – Ideal for tight spaces behind home theater setups, enabling Google Chromecast, Amazon Fire TV sticks, or Roku players to fit into side or rear ports without blocking adjacent HDMI inputs.
Gaming Console Setup Optimization – Protects the HDMI ports of PlayStation, Xbox, or Nintendo Switch consoles when placed in narrow entertainment centers, shallow media cabinets, or shelving units.
Commercial Digital Signage & Displays – Streamlines high-density cabling behind retail display monitors, menu boards, and corporate presentation screens where rear clearance is highly restricted.
Projector & Ceiling Mount Cable Management – Simplifies overhead projector installations by directing heavy HDMI source cables vertically along the mounting bracket, reducing unsightly cable sag and port strain.

Package Contents

1x HDMI Adapter M/F (270°).

Safety & Compliance

Important Safety Instructions:

Verify Port Orientation Before Inserting: Because this adapter features a fixed right-angle design, check the alignment of your display's HDMI port first. Ensure the adapter's direction (routing the cable either upward or downward) matches your workspace layout and will not block neighboring ports or physical obstacles.
Avoid Forcing the Connection: Insert the adapter gently into the host port. If you meet resistance, verify the connector alignment. Forcing the adapter at an incorrect angle can warp the gold-plated contacts or permanently damage the internal ports of your television or media player.
Power Off Hardware During Installation: For maximum component safety, turn off and unplug your source equipment (streaming sticks, gaming consoles, or PCs) and your display monitor before attaching or removing the adapter to prevent minor electrical static transfer.
Do Not Exceed Cable Weight Limits: While the adapter's high-impact molded shell protects the internal wiring traces, avoid hanging excessively heavy, long, or thick HDMI cables directly from the adapter without proper structural support or cable ties.
Prevent Sharp Lateral Pulling Forces: Ensure the connected HDMI cable routes cleanly away from the adapter. Avoid sharp tugs, heavy lateral tension, or tripping hazards that could pull on the adapter sideways, which risks cracking the housing or damaging the host device's internal circuit board.
Operate in Dry, Ventilated Environments: Keep the adapter free from liquids, moisture, and high humidity. Do not install it in unventilated spaces directly against hot television components or enclosed AV racks where temperatures regularly exceed standard operating thresholds.
