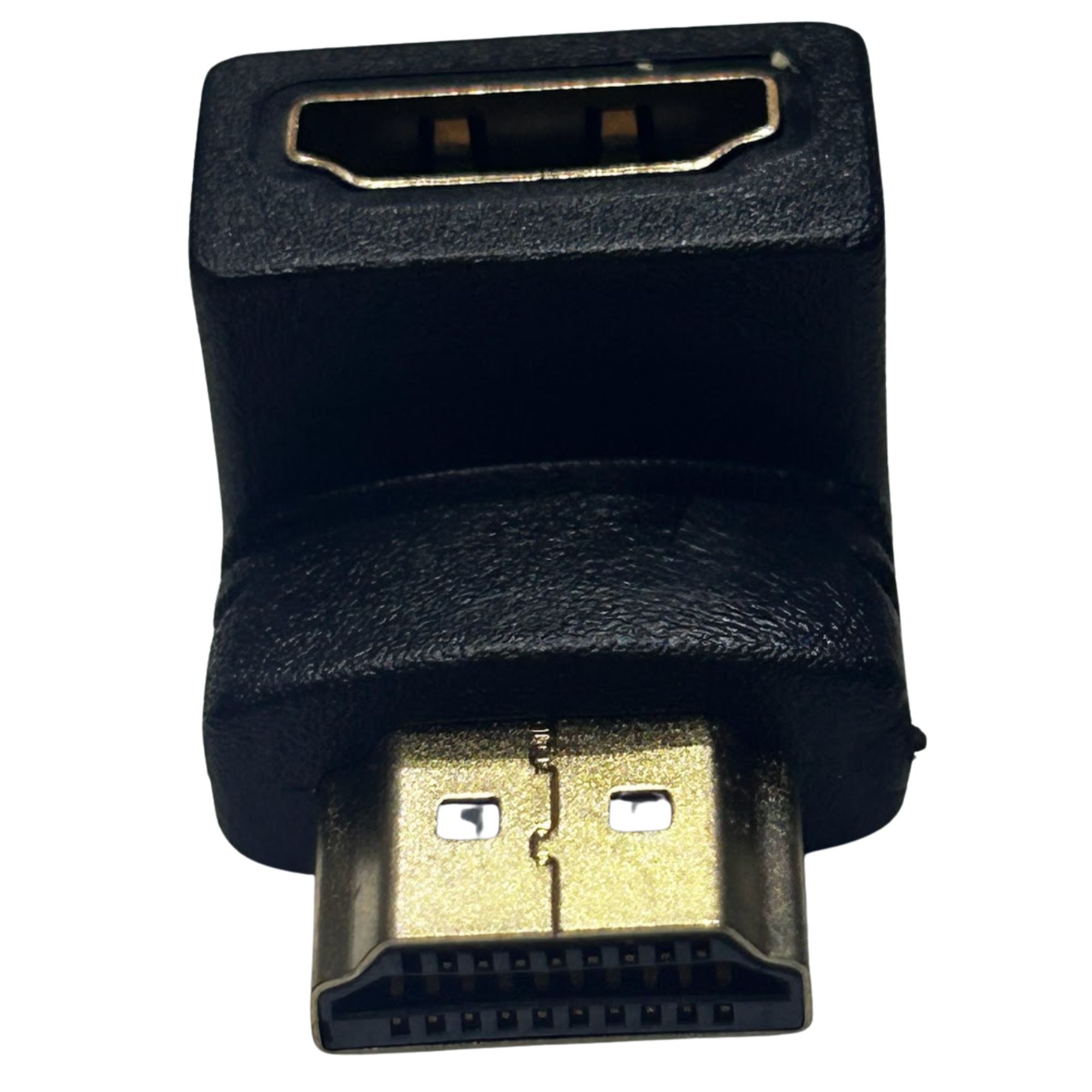

HDMI Adapter M/F (L-Type)

Instantly saves space and eliminates terminal port strain behind wall-mounted displays by dropping your cable path into a clean, flat 90° downward vertical run.

Product Images & Video

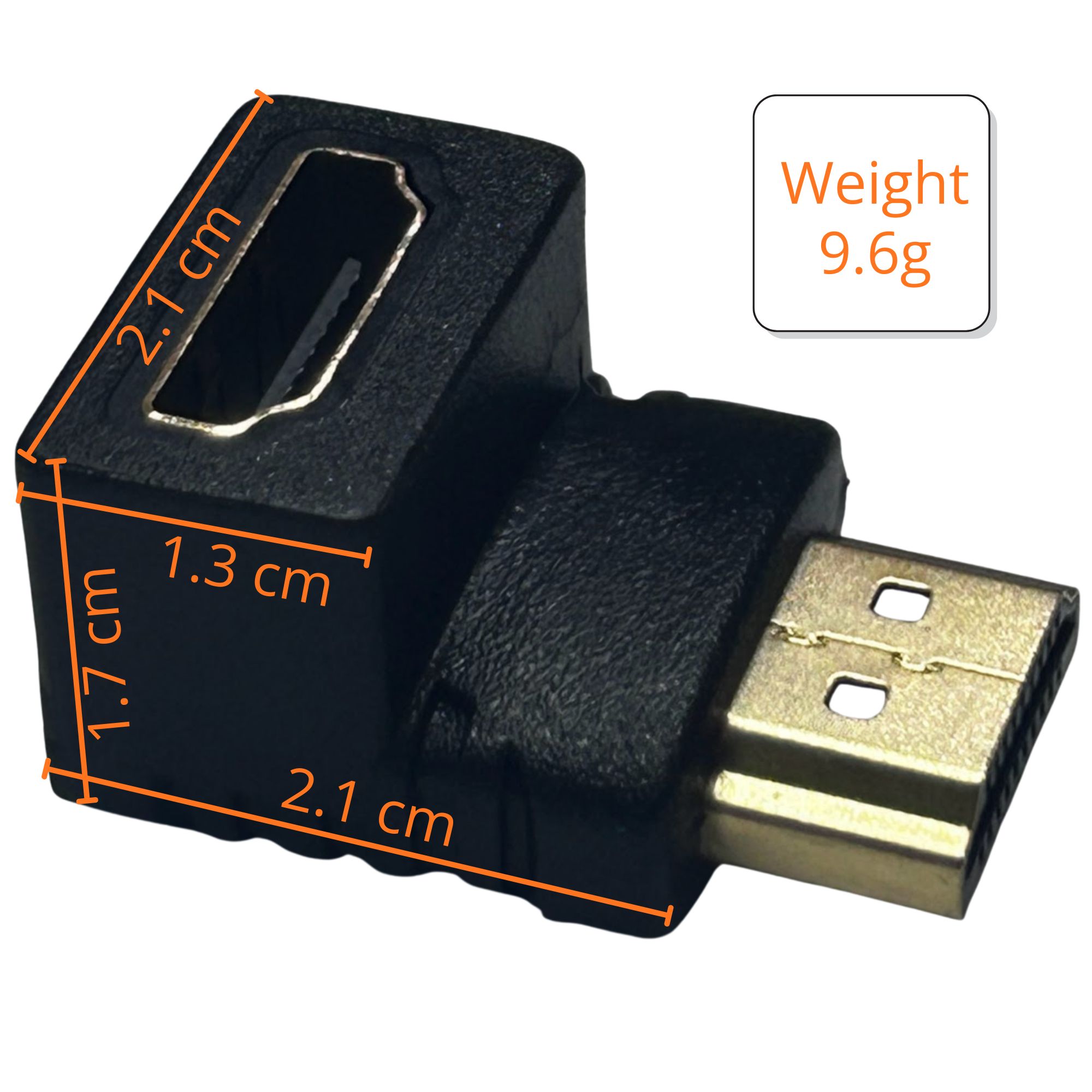

HDMI Adapter M/F (L-Type)

Key Features

Fixed 90° L-Type Alignment

Engineered with a precise, structural 90° downward elbow that instantly redirects your cable path. It provides a clean vertical drop directly from your horizontal ports, preventing heavy cables from protruding outward.

Low-Profile Space Optimization

Drastically reduces the depth clearance required behind flat wall-mounted LED televisions, ultra-thin commercial digital monitors, and shallow home theater AV shelving units. Allows premium screens to sit closer to the wall without crushing your hardware connections.

Targeted Port Strain Relief

Absorbs the continuous downward pulling weight and severe bending tension typically exerted by heavy, rigid high-speed HDMI cables. Protects the internal solder points of your display's built-in ports from stretching, loose connections, or permanent physical damage.

High-Speed Audio & Video Pass-Through

Functions as a premium, passive hardware bridge that preserves complete signal integrity. Seamlessly supports modern high-definition standards, including ultra-crisp 4K Ultra HD @ 60Hz, Full HD 1080p, 3D video depth, and multi-channel digital audio formats like Dolby TrueHD and DTS-HD Master Audio.

Corrosion-Resistant Gold-Plated Contacts

Features high-conductivity gold-plated connectors that guard against atmospheric rust, oxidation, and signal degradation over long-term residential or retail use. Ensures immaculate digital data synchronization and low contact resistance.

Heavy-Duty Plug-and-Play Shell

Requires zero driver installations, external power cables, or software configurations. Enclosed in a rugged, high-impact molded PVC protective housing built to handle tight physical installations, structural pressure, and frequent cable swaps.

Technical Specifications

Specification	Details
Product Model	HDMI Adapter M/F (L-Type)
Interface Connector A	HDMI Type A Male
Interface Connector B	HDMI Type A Female
Angle Orientation	90° Fixed Downward L-Shape
Supported Resolutions	Ultra HD 4K @ 60Hz, 2K, Full HD 1080p, 3D Video
Bandwidth Performance	High-Speed HDMI Pass-Through (Up to 18Gbps)
Audio Standards	Dolby TrueHD, DTS-HD Master Audio, ARC (Audio Return Channel)
Contact Plating	High-Conductivity Gold-Plated
Housing Material	High-Impact Molded PVC Shell
Signal Architecture	Passive Bi-directional Pass-Through
Driver Requirement	Plug-and-Play (Hardware-Based, No Software Needed)

Applications

Flush Wall-Mounted Displays – The definitive solution for ultra-thin LED, OLED, or interactive commercial panels mounted tightly to the wall, allowing the HDMI cable to drop straight down without pressing into the drywall.
Shallow AV Cabinets & Media Shelves – Eliminates rear clearance constraints behind heavy home theater receivers, cable boxes, and Blu-ray players placed inside tight entertainment centers or enclosed cabinetry.
Rear-Port Gaming Station Setup – Ideal for neat cable routing behind gaming consoles like the PlayStation or Xbox, redirecting the cable cleanly along the back panel to prevent accidental bent pins when pushing the console back on a shelf.
Desktop Monitor Cable Management – Organizes workspaces and dual-monitor mounts by guiding thick display cables directly down the mounting column, keeping desktop surfaces free from looping, tangled cords.
Commercial Digital Signage & Kiosks – Protects public-facing display infrastructure in retail, restaurant menu boards, and corporate lobbies by keeping video cabling concealed and structurally aligned with the mounting brackets.

Package Contents

1x HDMI Adapter M/F (L-Type).

Safety & Compliance

Important Safety Instructions:

Confirm Port Direction Compatibility: This is a rigid, fixed 90° L-shape adapter. Verify the orientation of your display's female HDMI port before mounting to ensure the adapter drops your cable downward as intended and does not accidentally block adjacent ports, power inputs, or structural chassis elements.
Do Not Force the Connection: Align the connectors perfectly parallel before pushing the adapter into place. Forcing the connection at an uneven angle or into an incompatible port layout can twist the gold-plated pins or crack the internal port housing of your high-end display or source equipment.
Avoid Excessive Lateral Pressure: Do not push your television or monitor completely flush against a wall if it presses directly flat against the back of the adapter's molded PVC shell. Continuous structural pressure can bend the HDMI male terminal, causing intermittent signal loss or permanent hardware failure.
Support Heavy Cable Runs: While the adapter is built to relieve port strain, avoid letting exceptionally long, heavy, or thick industrial HDMI cables hang completely unsupported from the female connector. Use cable clips or ties to secure the vertical run and distribute the weight evenly.
Keep Environment Dry and Cool: Do not use this adapter in high-moisture areas or unventilated spaces directly behind major heat-emitting appliances. Excessive ambient heat or condensation can compromise the gold-plated contacts, leading to digital artifacting or signal degradation.
Disconnect Power During Setup: For maximum component safety, turn off your display screen and source media players before attaching or removing the adapter to prevent minor static electrical discharge between your HDMI components.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.
