HDMI Adapter T-Type (Mini/Micro Male to HDMI Female)

This 3-in-1 T-shaped space-saver bridges both Mini and Micro HDMI devices directly to a standard HDMI cable, serving as the ultimate multi-purpose pocket utility for portable electronics.

Product Images & Video

HDMI Adapter T-Type (Mini/Micro Male to HDMI Female)

HDMI Adapter T-Type (Mini/Micro Male to HDMI Female)

Key Features

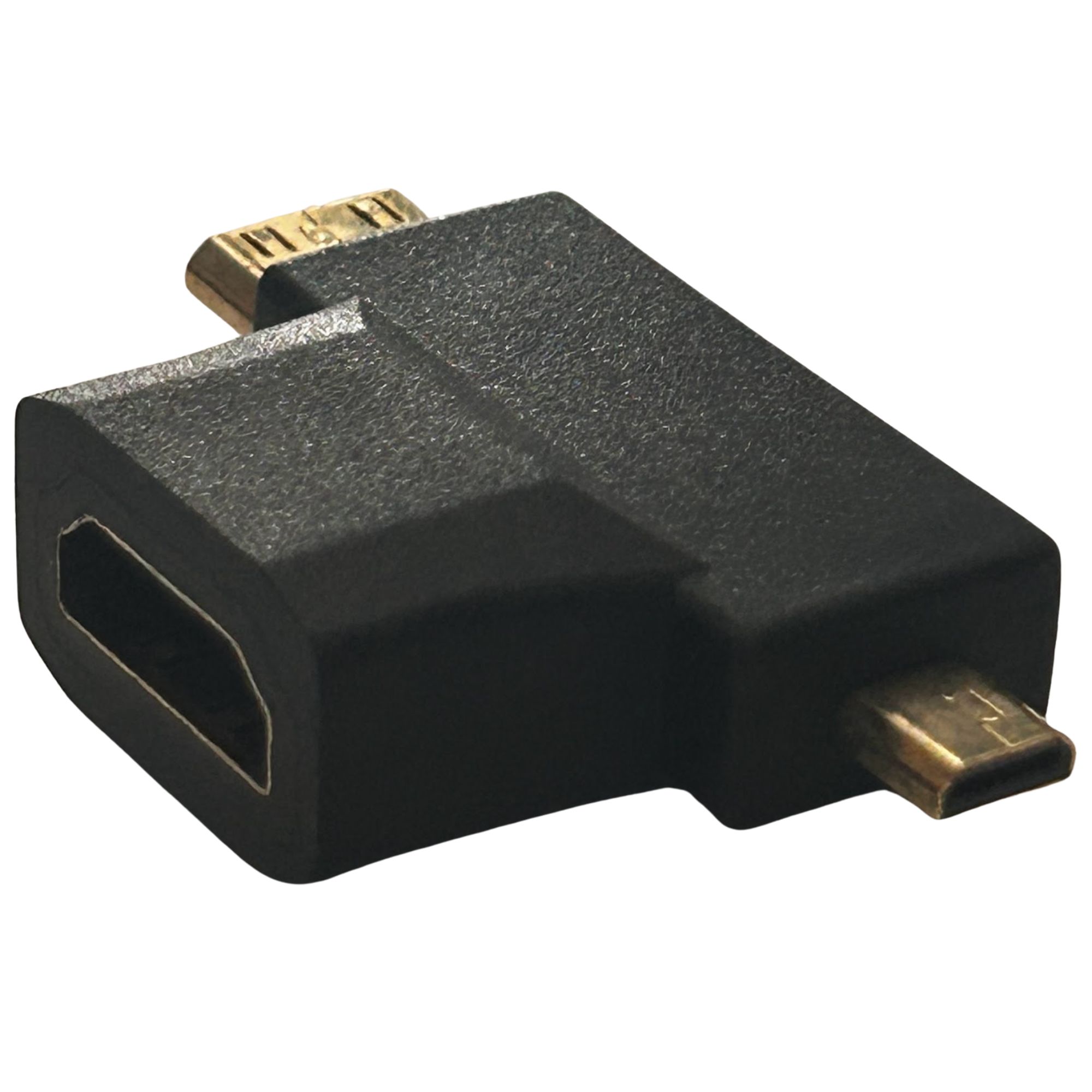

Versatile 3-in-1 T-Type Architecture

Uniquely integrates a Mini HDMI male connector on one side and a Micro HDMI male connector on the other, splitting into a central standard HDMI female port. This design eliminates the need to carry multiple loose cables or separate adapters.

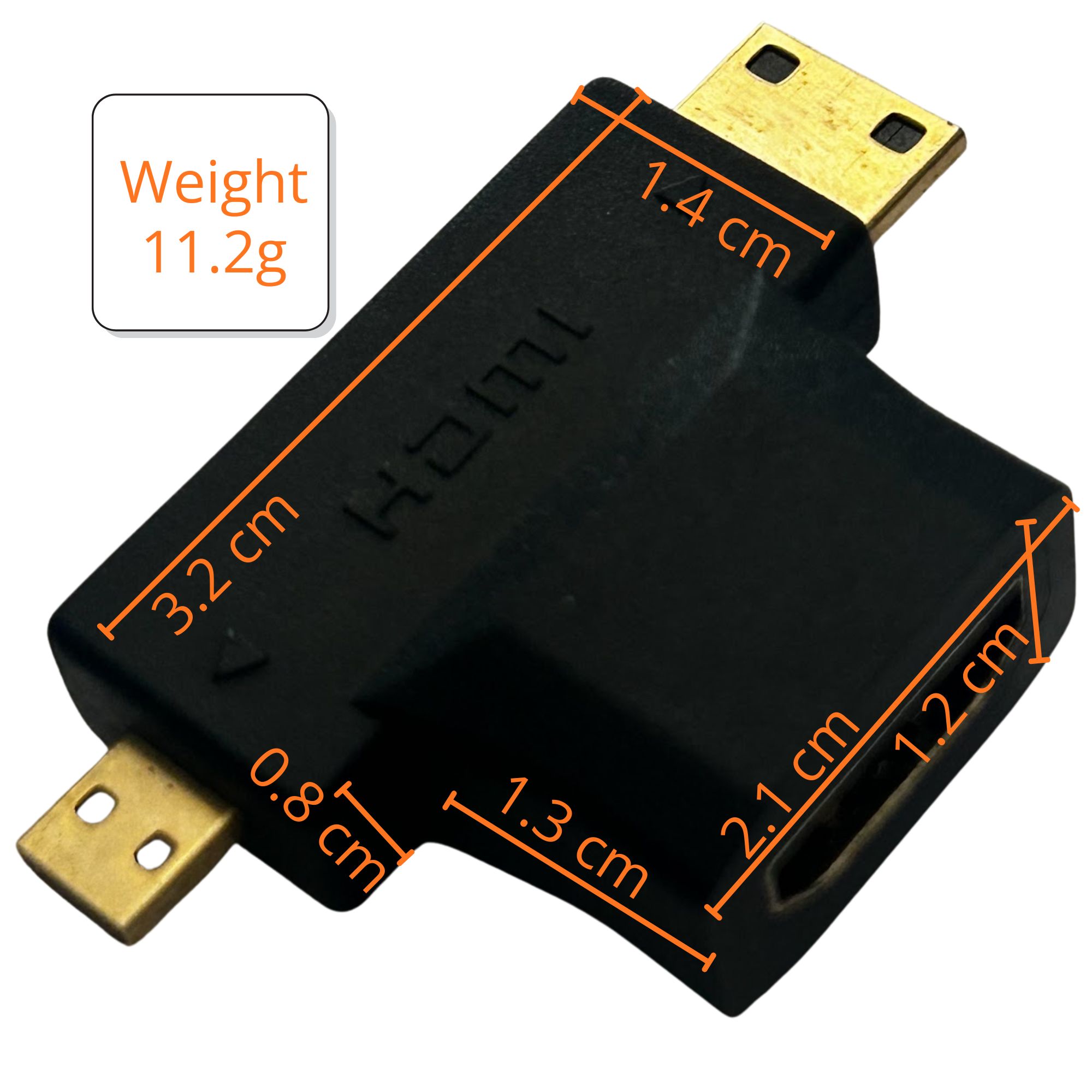

Precision Industrial Dimensions

Engineered to sit flush against portable electronics with exact physical dimensions:

Total Width Profile: 3.2 cm pin-to-pin clearance.
Central Housing Length: 2.1 cm total block depth.
Port Thickness: A slim 0.8 cm layout for tight setups.
Interface Extrusions: Main block step downs at 1.4 cm, 1.3 cm, and 1.2 cm ensuring a structural fit.

Ultra-Lightweight Port Guard

Weighing only 11.2g, this miniature adapter avoids putting heavy downward leverage on delicate Micro or Mini HDMI motherboard ports, protecting internal soldering joints from cracking over time.

High-Speed Audio & Video Pass-Through

Delivers a pure, passive digital hardware bridge capable of supporting up to 4K Ultra HD resolutions, crisp 1080p video mirroring, 3D playback channels, and uncompressed multi-channel digital audio layouts.

Corrosion-Resistant Gold-Plated Plugs

Built with premium gold-plated male and female contacts to resist atmospheric humidity and oxidation, maintaining low contact resistance and flawless signal synchronization through years of frequent connecting.

Ruggedized Molded PVC Shell

Encased in an insulated, heavy-duty molded plastic housing designed to withstand the physical pressure of storage pockets, travel bags, and active presentation environments.

Technical Specifications

Specification	Details
Product Model	HDMI Adapter T-Type (Mini/Micro Male to HDMI Female)
Interface Connector A	HDMI Type C Mini Male
Interface Connector B	HDMI Type D Micro Male
Interface Connector C	HDMI Type A Standard Female
Total Width Profile	3.2 cm (Pin-to-Pin Clearance)
Central Housing Depth	2.1 cm
Body Thickness	0.8 cm
Housing Step Dimensions	1.4 cm / 1.3 cm / 1.2 cm block segments
Item Net Weight	11.2g
Supported Resolutions	Ultra HD 4K @ 60Hz}, 2K, Full HD 1080p, 3D Video Pass-Through
Bandwidth Performance	High-Speed HDMI Pass-Through (Up to 18Gbps})
Audio Standards	Dolby TrueHD, DTS-HD Master Audio, Surround Sound
Contact Plating	High-Conductivity Gold-Plated
Housing Material	High-Impact Molded PVC Shell
Signal Architecture	Passive 3-in-1 Bi-directional Pass-Through
Driver Requirement	Plug-and-Play (Hardware-Based)

Applications

On-the-Go Camera & Camcorder Mirroring – Allows photographers and videographers to instantly connect DSLR cameras, mirrorless bodies, or HD camcorders (which typically feature Mini or Micro HDMI ports) to standard HDMI cables on studio monitors or client viewing screens.
Single-Board Computer & Tablet Display Bridge – Ideal for tech benches and development labs to easily interface compact single-board computers (like the Raspberry Pi 4) or older Windows/Android tablets directly to a standard HDMI workshop monitor.
Mobile Presentation Utility – A vital addition to any IT or sales professional’s travel kit, enabling ultra-portable laptops and notebooks to interface seamlessly with boardroom projectors, conference room TVs, or retail display panels without carrying multiple heavy cables.
Action Cam & Drone Footage Playback – Streamlines media workflows by letting users plug action cameras or drone remote controllers straight into a living room television or commercial showroom display for immediate, high-definition playback.
Compact Field Testing Kit Tool – Simplifies field service operations for technicians who need a singular, lightweight tool to diagnose and test video feeds across diverse hardware form factors without cluttering their service bags.

Package Contents

1x HDMI Adapter T-Type (Mini/Micro Male to HDMI Female).

Safety & Compliance

Important Safety Instructions:

Single-Input Usage Only: This adapter is structurally designed to use only one male connector (either Mini or Micro HDMI) at a time. Do not attempt to plug both the Mini and Micro male ends into separate active source devices simultaneously, as this can cause critical electrical cross-feeding and damage your hardware.
Support Hanging Cable Weight: Because portable devices like tablets, action cameras, and DSLRs have delicate internal ports, always support the weight of the connected standard HDMI cable. Letting a heavy, rigid cable hang completely unsupported from the central female port puts severe leverage on the tiny Micro or Mini pins, risking permanent motherboard damage to your device.
Align Connectors Straight and True: Micro and Mini HDMI interfaces have extremely fine pin layouts. Always align the adapter perfectly straight with your device's port before inserting it. Never force, tilt, or rock the adapter during insertion or removal, as this can easily bend the gold-plated terminals or crack the internal port lining.
Verify Interface Compatibility: Ensure your portable device explicitly features a standard Mini HDMI (Type C) or Micro HDMI (Type D) port before connecting. This adapter is physically incompatible with Micro-USB, USB-C, or proprietary charging ports; forcing it into an incorrect port will cause immediate physical damage to both the adapter and the device.
Protect Against Lateral Impacts: Avoid leaving the adapter plugged into your camera or tablet while transporting it in a bag or moving around a busy set. Any sudden bump or lateral impact to the protruding 3.2 cm body can act as a lever, multiplying the force and snapping the connector off inside your device's port.
Power Off Sensitive Equipment: For maximum component safety, turn off your portable device (camera, tablet, or single-board computer) and the destination display monitor before making or breaking connections to eliminate the risk of static discharge or HDMI handshake errors.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
