HDMI Extender Splitter 1x4 (50m)

Extend and split one HDMI source to four displays over long distances using standard network cables (UTP).

Product Images & Video

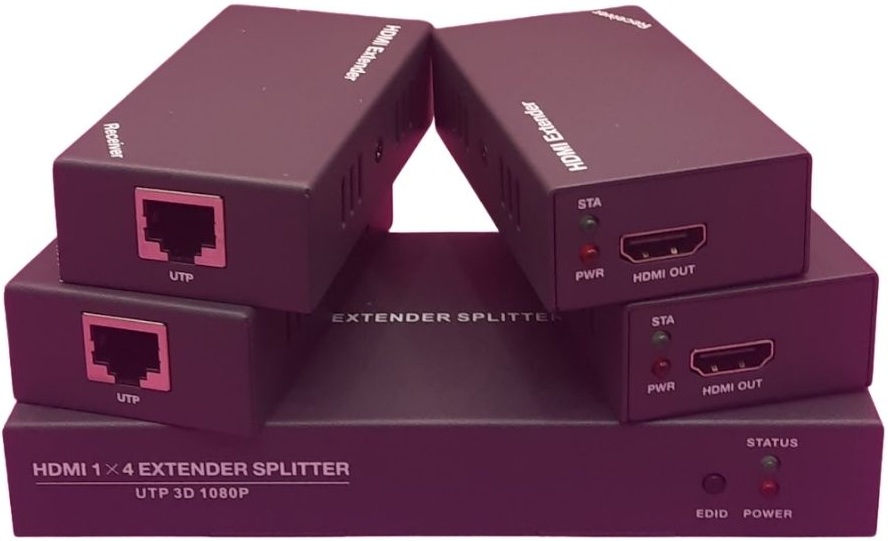

Ports view of HDMI Extender Splitter 1x4 (50m)

Video

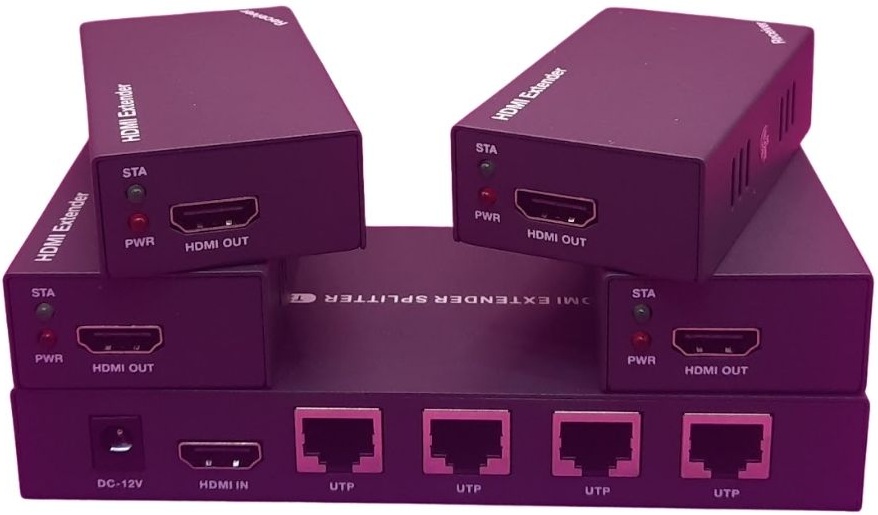

Ports view of HDMI Extender Splitter 1x4 (50m)

Key Features

Extend and Split Simultaneously

This single system combines the functionality of an extender and a splitter. It takes one HDMI input, extends the signal over a long distance, and then splits it to four independent HDMI outputs at the destination.

Long-Distance Transmission via UTP Cables

Uses standard Cat5e/6 Unshielded Twisted Pair (UTP) network cables to transmit the HDMI signal over a significant distance (exact length not specified, but typical for this category is 30-60 meters), far exceeding the limits of a standard HDMI cable.

1-to-4 Distribution

Distributes the audio and video signal from one source device (e.g., Blu-ray player, media PC) to up to four displays (TVs, monitors, projectors) simultaneously, with all displays showing identical content.

Technical Specifications

Specification	Details
Compatibility	HDMI source devices; HDMI displays; uses standard RJ45 Cat5e/Cat6 UTP cables for extension.
Power Supply	Requires external DC 12V power supply (adapter included).
Interface/Ports	TX Unit (Transmitter): HDMI Input, (4) RJ45 UTP Outputs, DC 12V Power Input. RX Unit (Receiver): (4) RJ45 UTP Inputs, (4) HDMI Outputs, DC 12V Power Input. ul>
System Type	1x4 Extender/Splitter.
Status Indicators	STA (Status) and PWR (Power) LEDs on the receiver unit outputs.

Applications

Digital Signage Networks – Perfect for businesses that need to display the same content (e.g., advertisements, menus, information) on multiple screens spread across a large area like a retail store, airport, or hotel lobby, with the media player located in a central server room.
Large Venue Video Distribution – Ideal for sports bars, churches, or lecture halls where one video feed (e.g., a satellite box or presentation laptop) needs to be sent to many televisions or projectors located in different sections of a large room or building.
Command and Control Centers – Used in security or operations centers to duplicate a critical video source (e.g., a surveillance map or data feed) onto several monitoring stations from a single, centralized source.

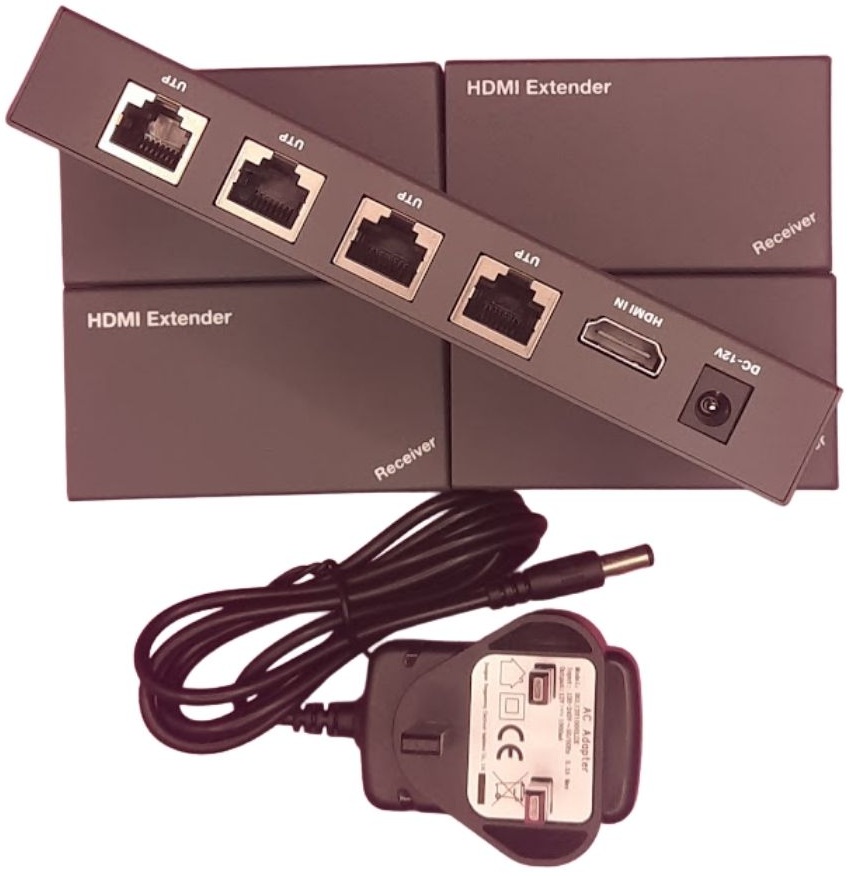

Package Contents

1x HDMI Extender Transmitter (TX) Unit (1x4 Splitter)
4x HDMI Extender Receiver (RX) Units
1x DC 12V Power Adapter

Safety & Compliance

Important Safety Instructions:

Use only the provided or a correctly specified DC 12V power adapter.
Ensure proper ventilation for both units.
The connection between the TX and RX units requires multiple UTP cables; ensure they are properly terminated and routed.
Do not disassemble the units.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.

Interested in this product?

Request Quote
