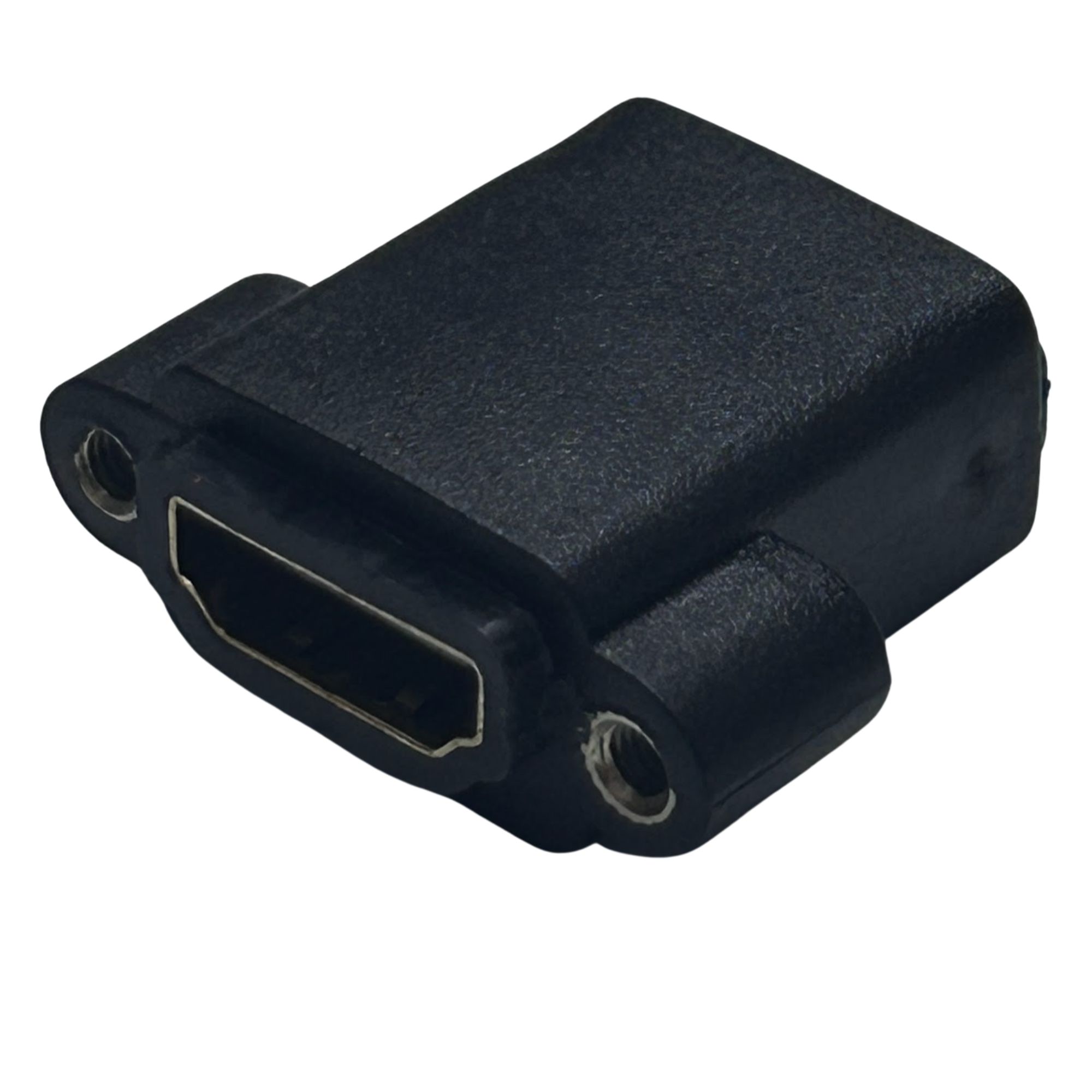

HDMI Joiner/Coupler F/F (Screw Type)

Extend your high-speed HDMI cable runs with confidence using this heavy-duty, panel-mountable female-to-female coupler featuring dual integrated screw ears for a locked, commercial-grade connection.

Product Images & Video

HDMI Joiner/Coupler F/F (Screw Type)

Key Features

Commercial-Grade Panel Mount Design

Features integrated structural side ears with pre-drilled screw holes, allowing this coupler to be securely bolted directly into custom wall plates, floor boxes, server racks, or customized AV control bulkheads.

Dual Female-to-Female Extension Bridge

Engineered to connect two standard male HDMI cables end-to-end, allowing you to instantly extend your total cable range without purchasing costly custom-length single cables or replacing existing in-wall wiring runs.

Ultra-Compact Industrial Dimensions

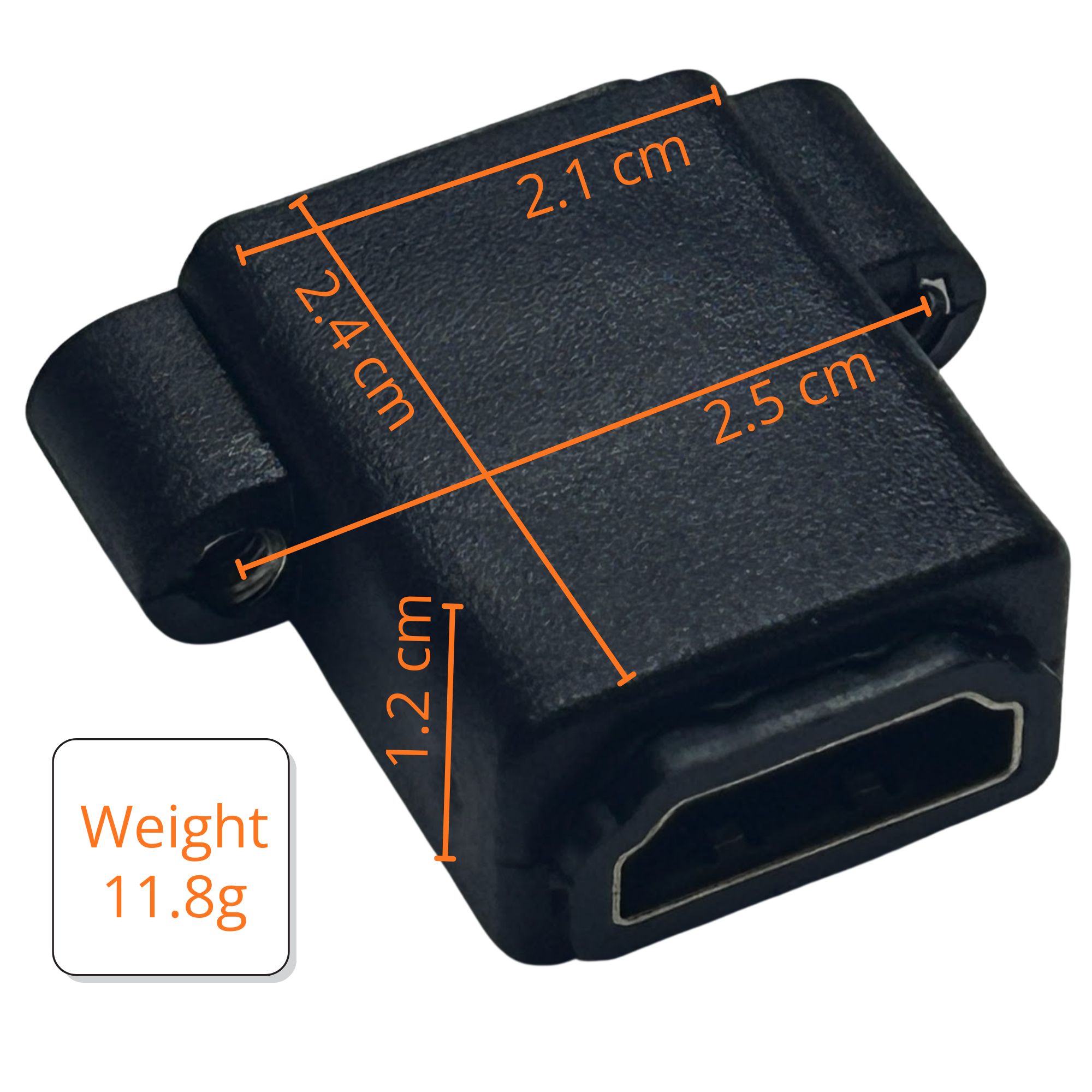

Precision-molded to fit tight hardware chassis envelopes with exact physical specifications:

Total Width Profile: 2.4 cm across the main body (2.5 cm outer ear spacing for mounting alignment).
Inline Housing Length: 2.1 cm total block depth.
Port Thickness: A slim, low-profile 1.2 cm vertical footprint.

Featherlight Component Footprint

Weighing exactly 11.8g, this ultra-lightweight hardware component avoids pulling or dragging on terminal port connections inside walls or cabinets before mounting screws are applied.

High-Speed Video & Audio Pass-Through

Provides a premium, uncompressed digital data bridge supporting up to 4K Ultra HD resolutions, deep color depths, 3D video signals, and multi-channel digital audio tracks (including Dolby TrueHD and DTS-HD Master Audio).

Corrosion-Resistant Gold Plating

Outfitted with high-conductivity gold-plated internal contacts on both female ports to resist humidity, reduce contact resistance, and prevent signal dropout in demanding, continuous-use commercial showroom or industrial warehouse environments.

Ruggedized Protective Shell

Encased in an insulated, heavy-duty molded PVC housing designed to protect internal soldering architectures from physical shock, structural vibration, and crushing forces during installations.

Technical Specifications

Specification	Details
Product Model	HDMI Joiner/Coupler F/F (Screw Type)
Interface Connector A	HDMI Type A Standard Female
Interface Connector B	HDMI Type A Standard Female
Total Width Profile	2.4 cm (Across Main Chassis Block)
Mounting Center Distance	2.5 cm (Screw-Ear Centerline Tracking)
Inline Housing Depth	2.1 cm
Body Thickness	1.2 cm
Item Net Weight	11.8g
Supported Resolutions	Ultra HD 4K @ 60Hz, 2K, Full HD 1080p, 3D Video Pass-Through
Bandwidth Performance	High-Speed HDMI Pass-Through (Up to 18Gbps)
Audio Standards	Dolby TrueHD, DTS-HD Master Audio, ARC (Audio Return Channel)
Contact Plating	High-Conductivity Gold-Plated
Housing Material	High-Impact Molded PVC Shell with Integrated Side Mounting Ears
Signal Architecture	Passive Bi-directional Pass-Through
Driver Requirement	Plug-and-Play (Hardware-Based)

Applications

Custom Wall Plate & Faceplate Integration – Designed specifically to slide into standard D-series or custom-cut architectural wall plates, providing a clean, pass-through port for classrooms, boardrooms, and home theaters.
AV Bulkhead & Patch Panel Extension – Perfect for securing inside network enclosures, server racks, or main theater control room bulkheads to allow clean, organized cable-to-cable bridging without internal tangles.
In-Wall Cable Run Extending – Connects two standard male HDMI cables end-to-end behind walls or above ceilings, saving the time and high cost of ripping out and replacing existing structural wiring when layouts change.
Podium, Desk, & Lectern Surface Mounting – Can be bolted underneath or directly into conference room tables, smart lecterns, or studio desks, giving presentation speakers a rock-solid, fixed HDMI input port that won't push inward.
Industrial Automation & Kiosk Housing – Ideal for integration inside public digital signage, arcade cabinets, or industrial equipment housings where cables must be securely anchored against constant machinery vibrations.

Package Contents

1x HDMI Joiner/Coupler F/F (Screw Type).

Safety & Compliance

Important Safety Instructions:

Avoid Over-Tightening Mounting Screws: When securing the adapter to a wall plate, panel, or bulkhead, tighten the mounting screws until flush and firm. Applying excessive torque can crack the molded PVC ear tabs or strip the internal threading, destroying the adapter's structural mounting capability.
Verify Behind-Wall Depth Clearance: Before permanently mounting this coupler into a hollow wall or enclosed junction box, ensure there is adequate physical clearance behind the panel to accommodate both the adapter’s 2.1 cm depth and the natural bend radius of the rear HDMI cable. Forcing a cable into a sharp 90° bend against a wall or stud will damage the cable's internal conductors and cause immediate signal degradation.
Do Not Use as a Cable Tension Anchor: This coupler is designed to link two independent cables. It should never be used as a structural anchor point to support heavily weighted cables hanging freely across long vertical distances. Ensure all connected cables are properly supported with zip-ties or strain-relief anchors nearby to prevent continuous mechanical stress on the female ports.
Limit Total Combined Cable Length: Because this is a passive hardware utility that does not amplify signal voltage, connecting two exceptionally long standard HDMI cables end-to-end may exceed the maximum reliable transmission distance of your video source. If you experience screen flickering or a total loss of signal, shorten one or both cable runs or switch to an active directional cable format.
Ensure Clean, Dust-Free Installation Environment: If installing inside wall cavities, ceiling voids, or industrial floor boxes, keep the internal female ports covered until the final cables are plugged in. Drywall dust, metallic grit, and debris settling into the gold-plated pins can cause poor electronic contact or static short circuits.
Power Off AV Equipment During Mounting: Always power down your display monitors, matrix switchers, or source devices before plugging cables into the newly mounted coupler panel to protect your equipment from unexpected ground loops or static electricity discharge.
