HDMI to HDMI+Audio Converter

A versatile device designed to split HDMI signals into separate HDMI video and audio outputs.

Video

Features View

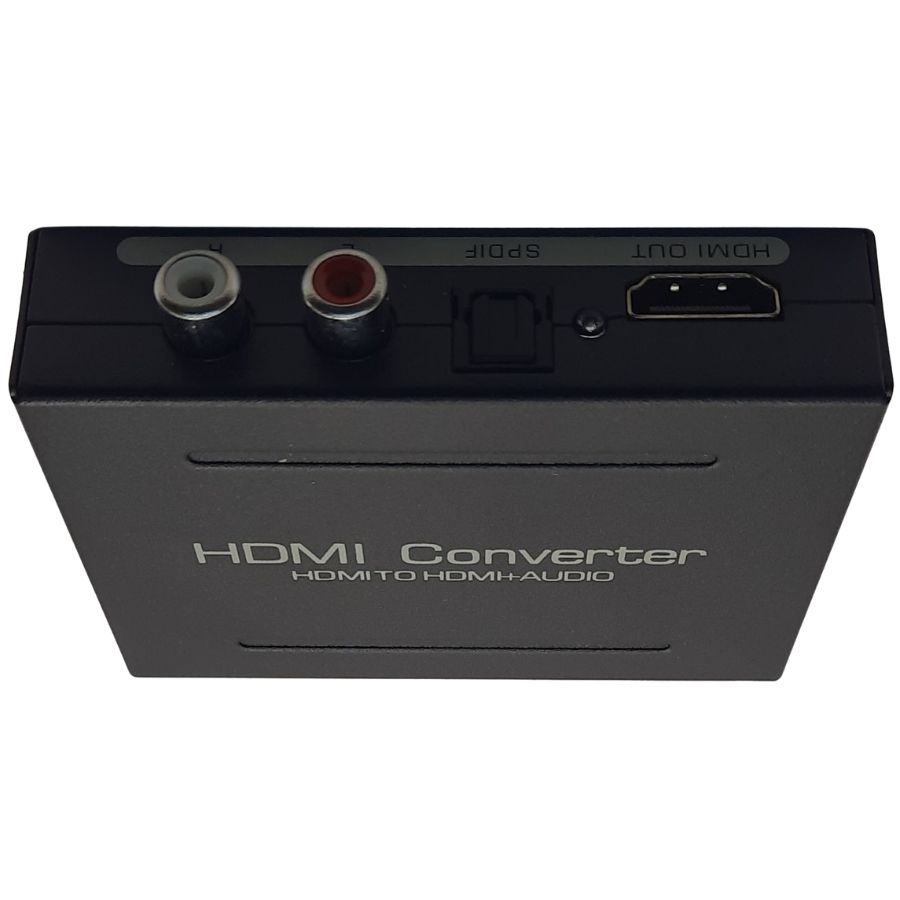

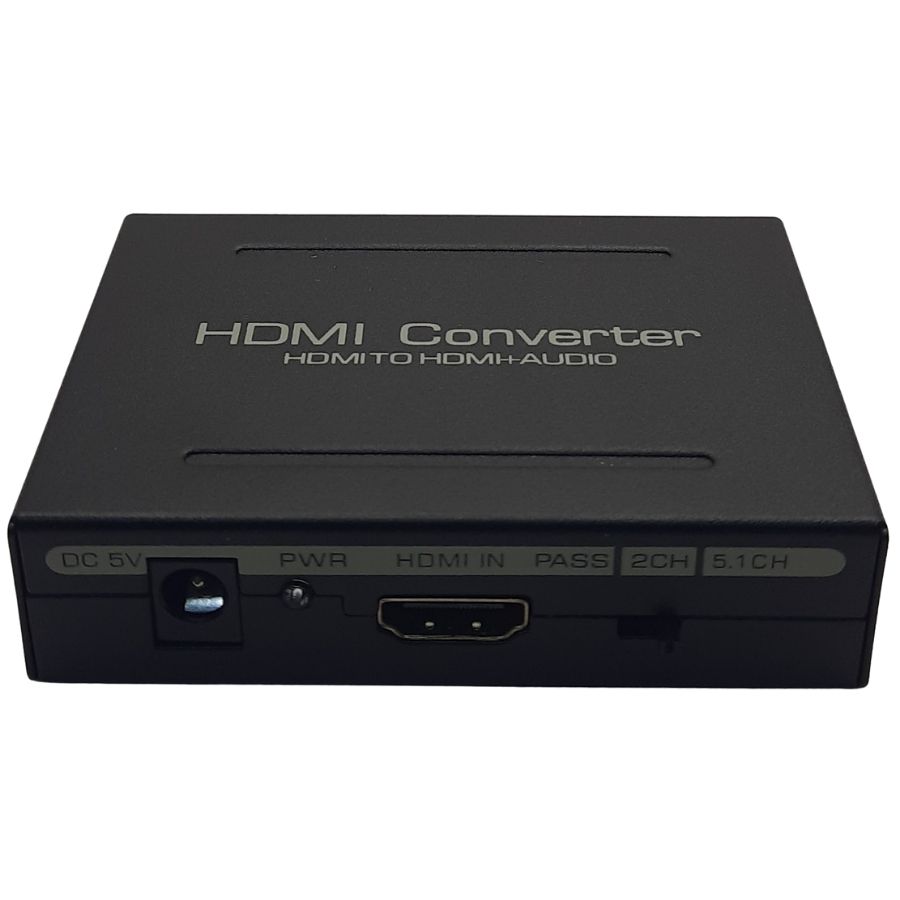

Converts HDMI input into HDMI video output and separate audio outputs (SPDIF + L/R analog).

Supports resolutions up to 1080P (50/60Hz) for sharp, vibrant images.

No software or drivers required—just connect and go.

Lightweight and portable for easy installation in any setup.

Works seamlessly with devices like Apple TV, Blu-ray players, gaming consoles, and more.

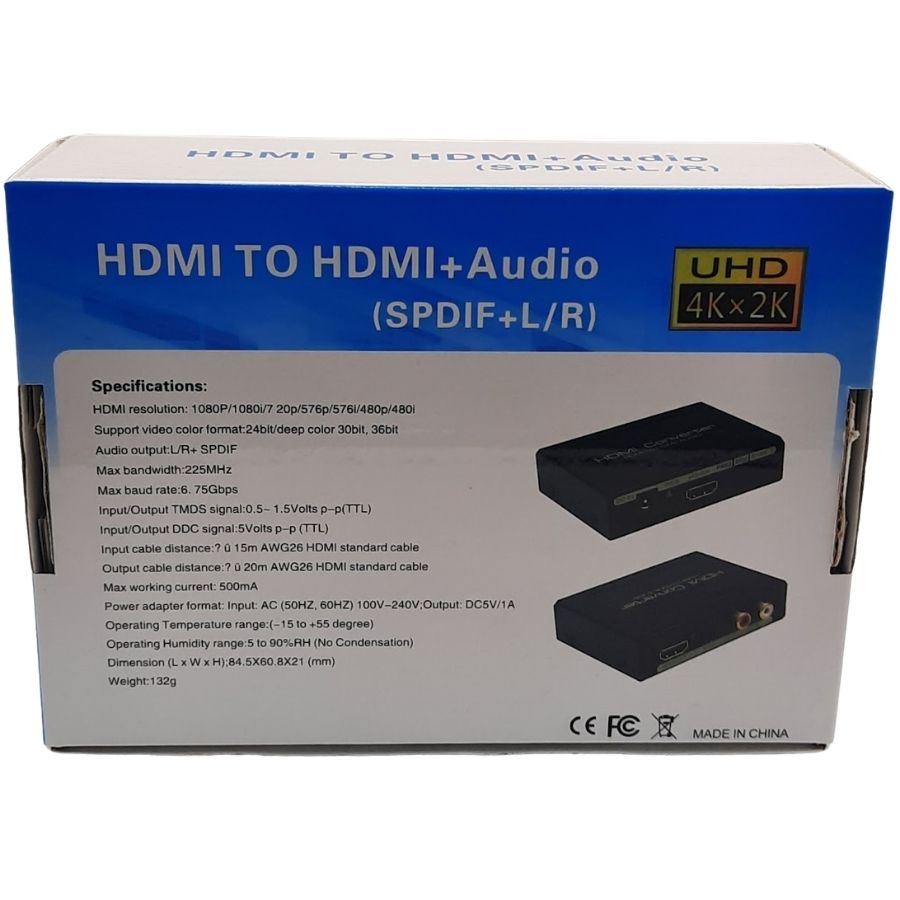

Specification	Details
Input Resolution	Up to1080P@50/60Hz, 720p, 480p
Output Resolution	Same as input resolution (up to 1080P)
Audio Output	SPDIF (Digital) + L/R (Analog)
Supported Video Formats	1080P, 1080i, 720p, 576p, 576i, 480p, 480i
Max Bandwidth	225 MHz
Max Baud Rate	6.75 Gbps
Input/Output TMDS Signal	0.5–1.5 Volts p-p (TTL)
Input Cable Length	Up to 15 meters (AWG26 HDMI standard cable)
Output Cable Length	Up to 20 meters (AWG26 HDMI standard cable)

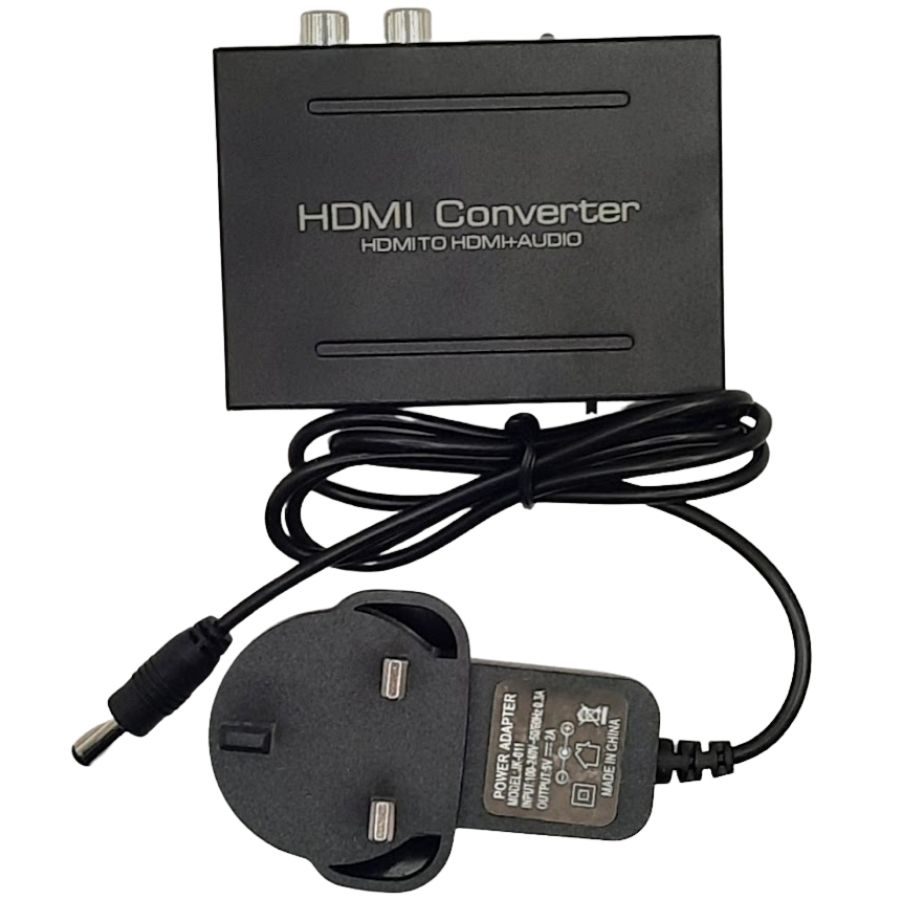

Power Supply	DC5V/1A (included)

Home Entertainment – Extract audio from your HDMI source to connect to external speakers or soundbars.
Conference Rooms – Separate audio and video signals for presentations or video conferencing.
Gaming Setups – Enhance your gaming experience by connecting HDMI audio to external sound systems.
Professional AV Systems – Ideal for installations requiring audio extraction from HDMI sources.

Power Supply Voltage Matching: Only use the provided DC 5V/1A power supply unit. Connecting a higher voltage power adapter can damage the internal digital processing chipsets and void your device warranty.
Observe Cable Distance Limits: To ensure stable signal performance and prevent audio drops or video flickering, do not exceed the recommended maximum AWG26 HDMI cable runs of 15 meters on the input side and 20 meters on the output side.
Ventilation and Moisture Control: Position the converter in a well-ventilated, dry area away from heat sources or direct sunlight. Do not cover or enclose the housing, as adequate air exposure prevents thermal buildup during continuous operation.

Please contact us for warranty information specific to this product.

For support, please visit our Contact Us page.
