KVM Extender via Cat-5e/6 (60m)

Extend full 1080p HDMI video, USB keyboard/mouse control, audio, and IR signals up to 60 meters over a single Cat5e/Cat6 ethernet cable.

Product Images & Video

Package view of KVM Extender via Cat-5e/6 (60m)

Post

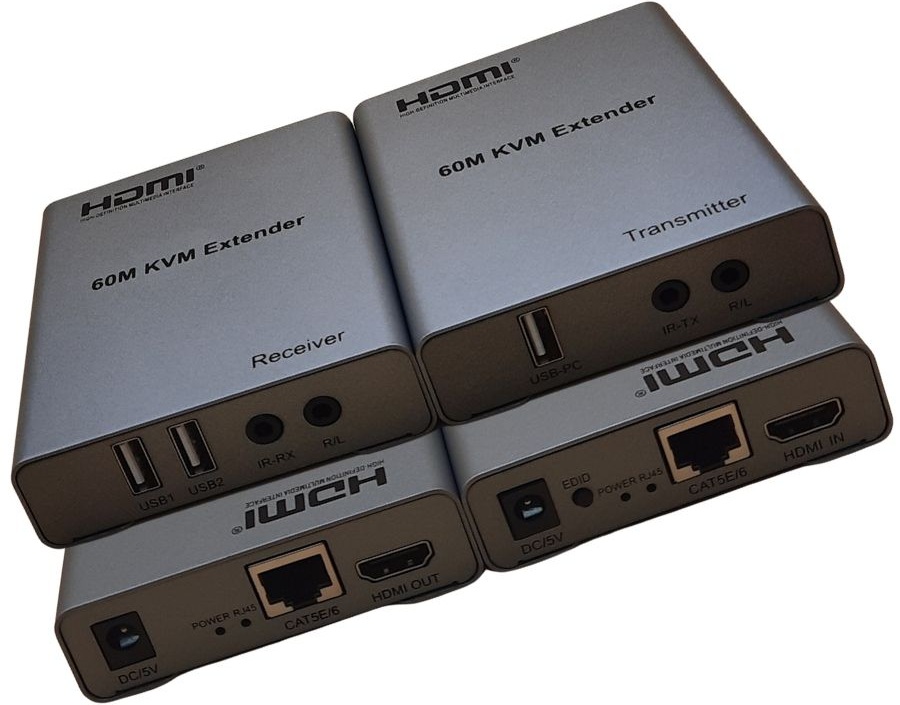

Front view of KVM Extender via Cat-5e/6 (60m)

Key Features

Long-Distance Transmission

Extend 1080p high-definition HDMI video and audio signals up to 60 meters (196 ft) using a single cost-effective Cat5e or Cat6 network cable.

Full KVM USB Control

Features dual USB ports on the receiver to connect a keyboard and mouse, allowing real-time remote control of connected PCs or NVR security systems.

Dedicated Audio Extraction

Built-in 3.5mm stereo (R/L) audio jacks on both the transmitter (TX) and receiver (RX) units for easy connection to external speakers or headphones.

Infrared (IR) Pass-Through

Supports IR remote control extension, enabling convenient source device management directly from the display side.

Integrated EDID Management

Built-in EDID button ensures automatic display parameter handshaking to optimize resolution and refresh rate compatibility.

Low Power & Heat Dissipation

Housed in durable, heat-dissipating metallic enclosures designed for low power consumption, quiet operation, and reliable 24/7 performance.

Complete Kit Included

Comes complete with transmitter and receiver units, dual DC 5V UK power adapters, IR transmitter/receiver cables, and a USB host cable for out-of-the-box installation.

Technical Specifications

Parameter	Specification
Max Resolution	1080p @ 60Hz
Transmission Distance	Up to 60 meters (196 ft) over Cat5e/Cat6
Video Connector	HDMI Female (TX Input / RX Output)
USB Interface	TX: USB-PC Port (Host Input) RX: 2× USB Ports (Keyboard/Mouse)
Audio Interface	3.5mm Stereo R/L Jack (TX & RX)
IR Interface	3.5mm IR-TX Port (Transmitter) / 3.5mm IR-RX Port (Receiver)
Network Interface	RJ45 Shielded Port (CAT5E/6)
EDID Control	Manual EDID Passthrough Button (TX)
Power Supply	DC 5V Power Inputs (Dual UK Power Adapters Included)
Enclosure Material	Metal Alloy Casing
Compliance	FCC, CE, RoHS Compliant

Applications

CCTV & Security NVR Remote Management – Monitor and control DVR/NVR surveillance systems from a security control room or office desk while keeping the recorder safely locked away.
Remote PC & Server Operation – Place loud, heat-generating server racks or high-performance PCs in a remote server room and operate them silently with a remote screen, keyboard, and mouse.
Commercial & Digital Signage – Distribute full HD video and audio content to distant displays in retail stores, shopping malls, trade shows, and airport terminals.
Conference Rooms & Classrooms – Mount laptops or media sources at a podium or presenter desk while connecting seamlessly to a wall-mounted TV or ceiling projector.
Home Theater & AV Installations – Route AV sources from a centralized media closet to living room or bedroom displays without signal degradation.

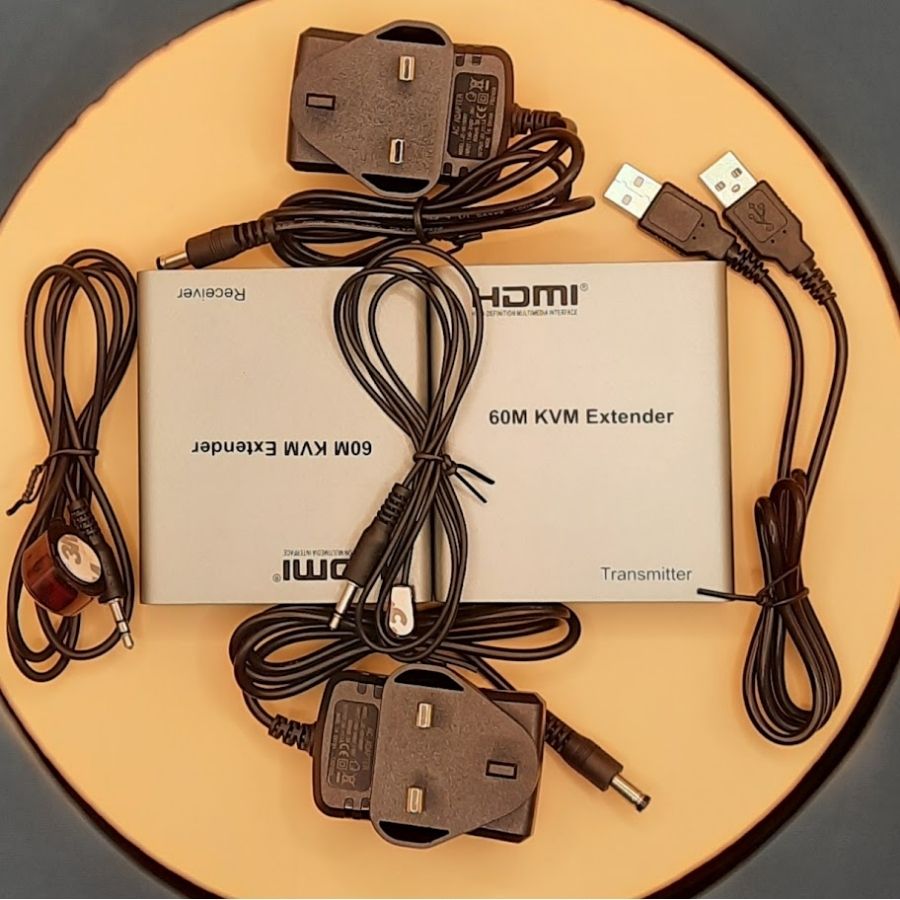

Package Contents

1x HDMI 60M KVM Extender Transmitter Unit (TX)
1x HDMI 60M KVM Extender Receiver Unit (RX)
Power Adapter (DC5V 1A)(2)
Input USB A Male to Male Cable
IR Blaster Remote Control Receiver Extender Cable 3.5mm
User Manual.

Safety & Compliance

Important Safety Instructions:

Power Supply: Use only the included DC 5V power adapters. Connecting an improper voltage supply may cause permanent damage or void the warranty.
Cable Selection: Use high-quality, pure copper Cat5e or Cat6 unshielded/shielded twisted pair (UTP/STP) ethernet cabling for optimal performance and to achieve the full 60m transmission distance. Avoid using CCA (Copper Clad Aluminum) cables for long runs.
Proper Grounding & ESD Protection: Ensure all connected devices (NVRs, PCs, monitors) are properly grounded to prevent electrostatic discharge (ESD) from damaging sensitive IC components over the network cable.
Ventilation & Environment: Install the units in a well-ventilated, dry environment. Do not place the transmitter or receiver on high-heat surface sources, near water, or in areas exposed to direct sunlight or rain.
Hot-Plugging Avoidance: Turn off power to both units before connecting or disconnecting the RJ45 network cable or HDMI sources to prevent potential HDMI handshake issues or circuit overload.
Do Not Disassemble: Do not attempt to open or modify the metallic casing. Servicing should be referred to authorized technical personnel only.

Certifications:

CE Certified: Complies with European Union safety, health, and environmental protection standards for electromagnetic compatibility and low-voltage electrical equipment.
FCC Compliant: Tested and verified under Federal Communications Commission standards (Part 15) to minimize radio frequency and electromagnetic interference in commercial and residential settings.
RoHS Compliant: Manufactured in strict adherence to Restriction of Hazardous Substances directives, ensuring construction is free from lead, mercury, and other hazardous materials.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
