Adapters

Mini HDMI Male to HDMI Female Adapter

Streamline your high-definition video setups with this straight, ultra-compact converter bridge, featuring a featherlight 7.4g footprint and a slim 0.7 cm profile that perfectly matches mobile gear and tight terminal layouts.

Product Images & Video

Mini HDMI Male to HDMI Female Adapter

Key Features

Straight In-Line Data Bridge

Engineered with a classic inline, straight pass-through configuration that maintains a traditional, direct cable path without bending or altering routing angles.

Ultra-Slim Profile Housing

Designed with a remarkably narrow 1.1 cm total depth block and a compact 1.4 cm chassis width, allowing side-by-side port utilization on hardware panels where space is highly constrained.

Featherlight 7.4g Footprint

Weighing a mere 7.4g, this adapter minimizes structural weight on ports, making it optimal for portable field equipment and hand-held filming stabilizers.

Compact Total Length

Measures just 2.7 cm from end to end, with a low-profile 2.1 cm main body length to keep your external cable protrusion as short and tidy as possible.

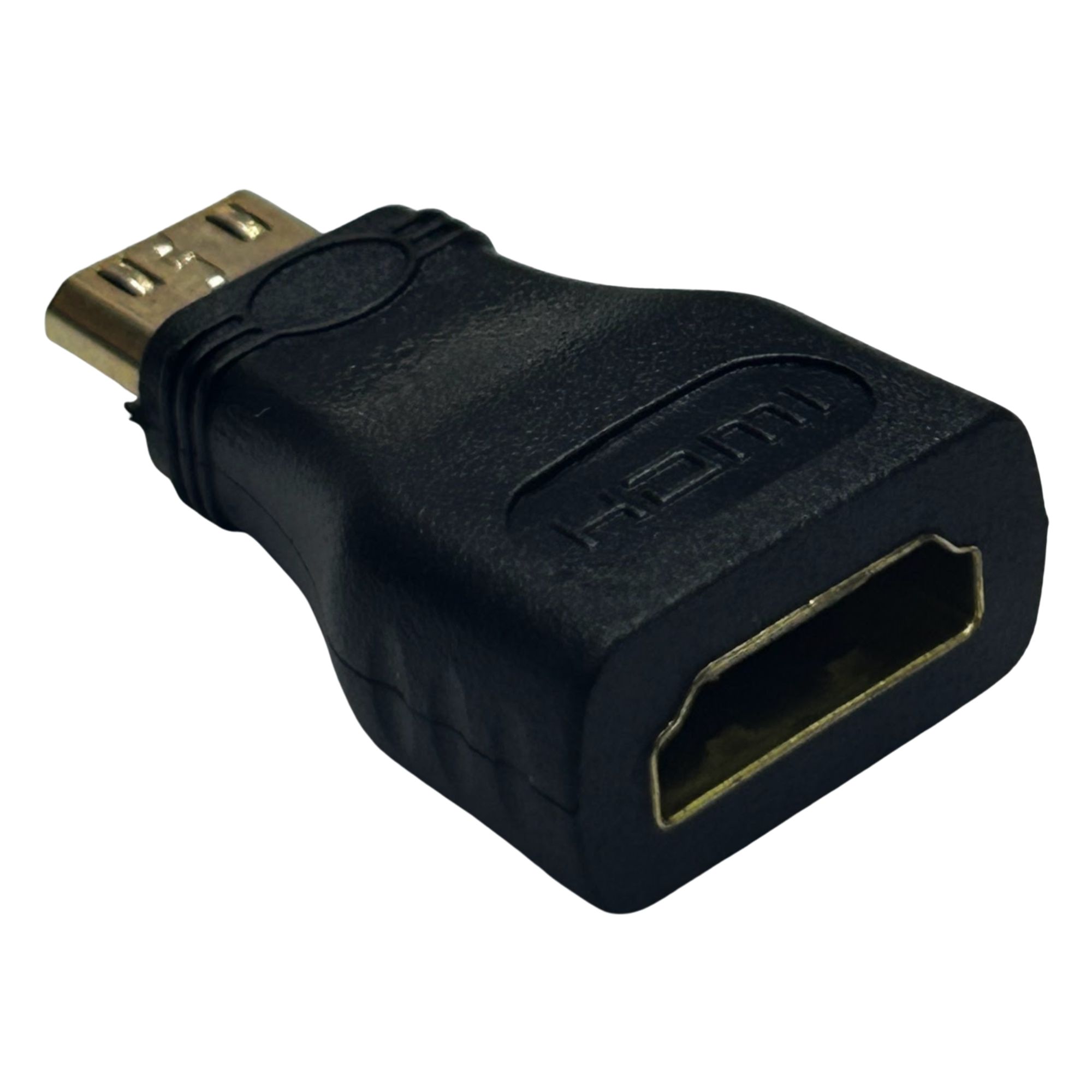

Mini HDMI Male to Full HDMI Female

Seamlessly converts a Mini HDMI (Type C) output into a standard Full HDMI (Type A) receptacle, eliminating the need to purchase dedicated, single-purpose cables for different devices.

High-Definition Video Pass-Through

Fully compatible with uncompressed digital signal matrices, delivering uncompromised support for resolutions up to 4K Ultra HD, deep color depth, 3D video feeds, and crystal-clear multi-channel audio tracks.

Rugged Injection-Molded Shell

Protected by a tough, impact-resistant molded PVC outer layer that isolates delicate copper transmission paths against everyday workplace wear, physical impacts, and structural vibrations.

Technical Specifications

Specification	Details
Product Model	Mini HDMI Male to HDMI Female Adapter
Interface Connector A	Mini HDMI Type C Male
Interface Connector B	Standard HDMI Type A Female
Form Factor / Orientation	Straight In-Line Pass-Through
Supported Video Formats	Ultra HD 4K @ 60Hz, 2K, Full HD 1080p, 3D Video Pass-Through
Bandwidth Performance	High-Speed HDMI Pass-Through (Up to 18Gbps)
Audio Standards	Dolby TrueHD, DTS-HD Master Audio, ARC (Audio Return Channel)
Housing Material	High-Impact Molded PVC Shell
Signal Architecture	Passive Bi-directional Pass-Through

Applications

Mobile Journalism & Field Recording – Perfect for connecting mirrorless cameras, DSLR bodies, or digital camcorders directly to standard HDMI field monitors, allowing camera operators to monitor live feeds on a larger display without carrying heavy, specialized cables.
Ultra-Book & Tablet Presentations – Ideal for professionals using slim notebooks, tablets, or multi-port hubs that feature a native Mini HDMI output, allowing for seamless connection to standard boardroom projectors or conference room displays.
Compact Single-Board Computing – Simplifies connection setups for legacy single-board computers or media player modules built with native Mini HDMI ports, adapting them instantly to standard desktop monitors or television screens.
Drone Ground Station Monitoring – Offers a lightweight, reliable link from remote control video outputs or video receiver stations to standard HDMI recording decks or viewing monitors for real-time FPV or flight telemetry tracking.
Graphics Card & Tech Workstation Testing – A convenient bench-testing tool for IT departments and repair shops to quickly verify video outputs on specialized, low-profile multi-display graphics cards without needing to swap out standard bench cables.

Package Contents

1x Mini HDMI Male to HDMI Female Adapter.

Safety & Compliance

Important Safety Instructions:

Avoid Forced Insertion Strain: Ensure the adapter is perfectly centered and level before plugging it into your device's port. Because inline adapters project straight out by 2.1 cm from the host housing, pushing or wiggling it at an uneven angle can bend the delicate internal pins or crack the device's internal soldering tracks.
Support Heavy Cable Runs: While this adapter weighs only 7.4g, a thick, long, high-grade standard HDMI cable hanging from it can create a heavy downward leverage pull. Use cable ties, anchors, or cage clamps to support the weight of long cable runs, preventing structural stress on the small Mini HDMI terminal.
Maintain Passive Length Constraints: This is a purely passive pass-through adapter with no active chipsets to amplify data signals. To guarantee a stable, flicker-free signal feed at 4K or 1080p resolutions, limit the total length of your connected standard HDMI cable to the maximum reliable output distance supported by your source equipment.
Keep Core Ports Clear of Dust: The compact ports on Mini HDMI electronics are highly sensitive to particulate buildup. Always check the adapter's terminals for pocket lint, dust, or debris before connecting, and store it in a dry, sealed case when not in use to avoid connection drops or signal insulation.
Power Off Before Making Connections: Always turn off your sensitive gear—such as field monitors, mirrorless cameras, or capturing cards—before connecting or removing the adapter. Hot-plugging live video rigs increases the risk of electrostatic discharge (ESD) anomalies that can damage sensitive internal processing boards.
