RG59 Cable CCS 95% +DC (305m)
Professional 305-meter Siamese CCTV cable combining 75-Ohm RG59 video coax with 95% high-density braiding and integrated 2-core DC power leads for streamlined, single-pull security camera installations.
Product Images & Video
Key Features
2-in-1 Siamese Cable Design
Combines 75-Ohm video coaxial line and 2-core DC power wiring into a single jacket, cutting installation time and labor in half.
95% High-Density Shielding
Features a protective aluminum foil layer paired with 96-strand CCA braiding to block EMI/RFI interference and ensure clear, crisp CCTV video signal transmission.
Optimized Core Construction
Built with a 0.81mm CCS (Copper Clad Steel) central conductor and 3.7mm FPE (Foam Polyethylene) dielectric for durable signal performance across medium-to-long camera runs.
Dedicated DC Power Conductors
Integrated 2x0.5mm² CCA power wires allow centralized power supply connections from the DVR/NVR location directly to the camera end.

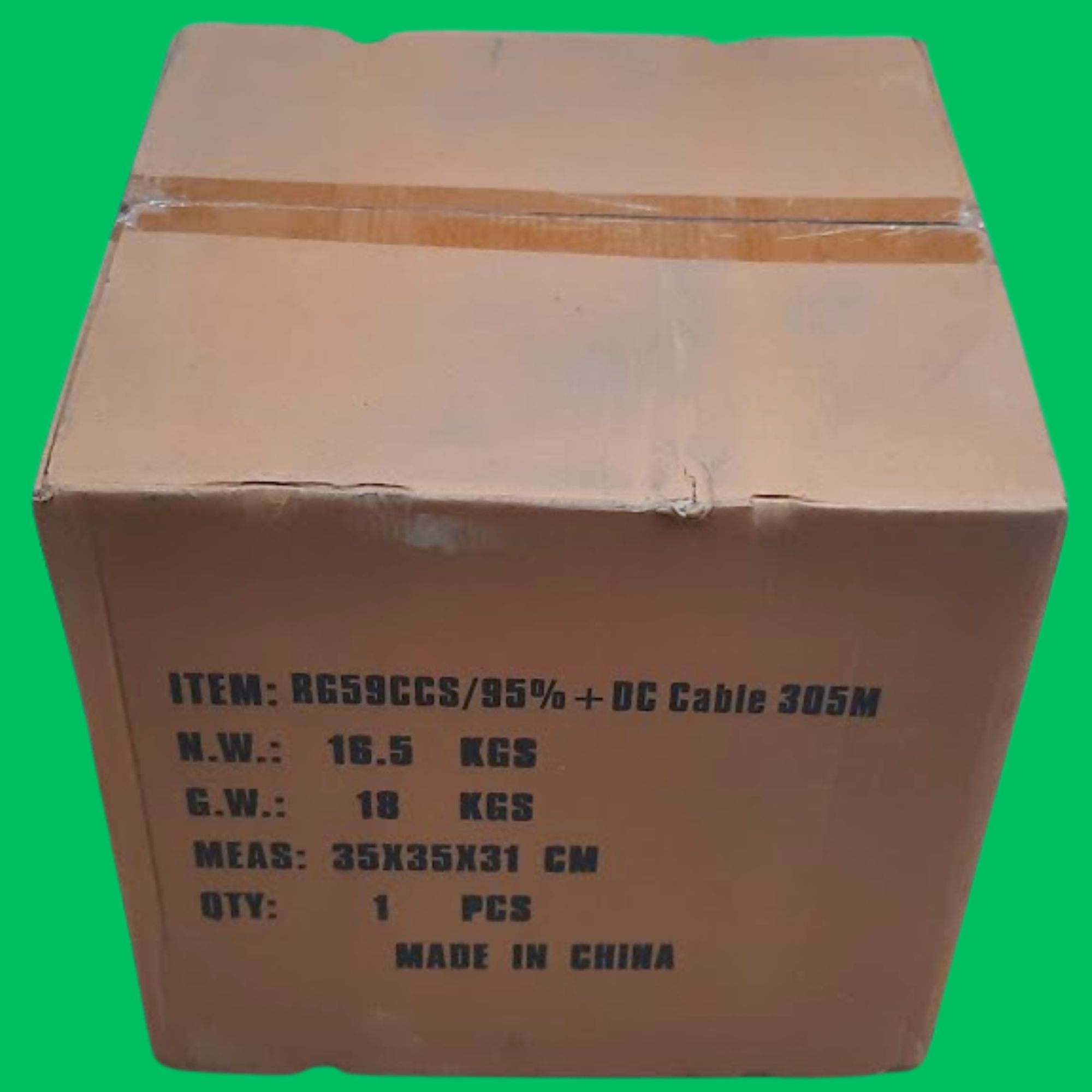

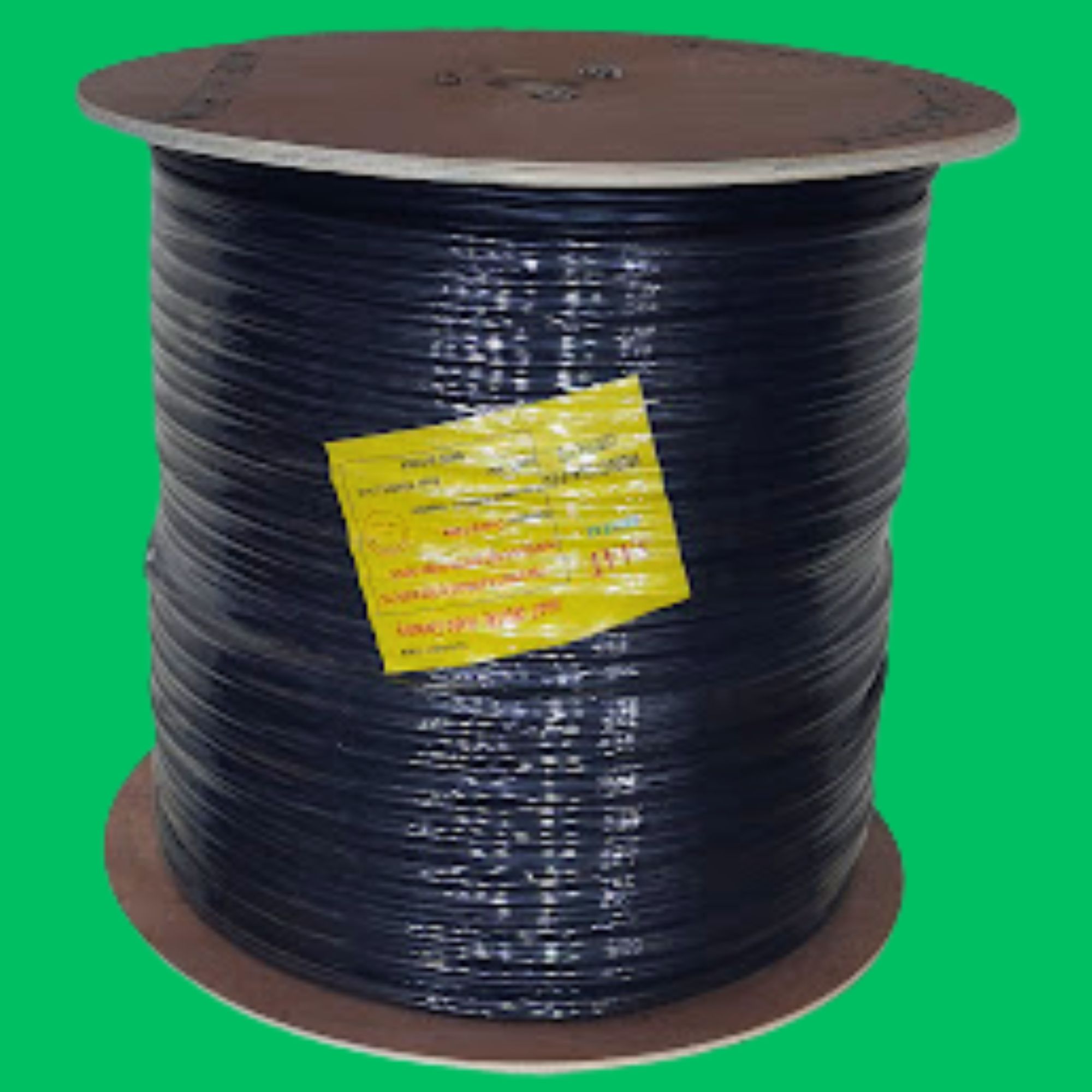

Durable 305m Pull-Box Reel
Packaged in a heavy-duty 305-meter (1,000 ft) reel box with a flexible 5.9mm PVC outer jacket, ideal for smooth wall, ceiling, and conduit pulls.
Technical Specifications
Specification PDF| Feature | Specification |
|---|---|
| Cable Type | RG59 Siamese (Coaxial Video + DC Power) |
| Coax Center Conductor | 0.81mm CCS (Copper Clad Steel) |
| Dielectric | 3.7mm FPE (Foam Polyethylene) |
| Shielding & Coverage | Golden Foil + 96-Strand CCA Braid (95% Coverage) |
| Power Wire Construction | 2x 0.5mm² CCA (Copper Clad Aluminum) |
| Outer Sheath | 5.9mm Flexible PVC (Black) |
| Roll Length | 305 Meters (1,000 Feet) |
| Impedance | 75 Ohms |
Applications
- Analog & HD-over-Coax CCTV Installations – Ideal for HD-TVI, HD-CVI, AHD, and traditional CVBS security camera systems requiring simultaneous video signal and power delivery.
- Commercial & Residential Security – Perfect for multi-camera deployments in retail stores, warehouses, office buildings, and residential properties.
- Centralized Power Management – Enables installers to place power supplies or multi-channel power distribution boxes at the DVR rack location instead of placing local adapters at each camera point.
