Cable Rolls
RG59 Cable CU 95% +DC (305m)
Premium 305-meter Siamese CCTV cable featuring a 100% solid bare copper core and 95% high-density braiding with 2-core power wire for low-attenuation, long-distance HD video signal performance.
Product Images & Video
Key Features
100% Solid Bare Copper (CU) Core
Built with a high-conductivity 0.81mm solid copper central conductor that significantly reduces signal attenuation, enabling crisp video transmission over extended cable distances.
Streamlined 2-in-1 Siamese Design
Combines a 75-Ohm video coaxial cable with integrated 2-core DC power leads into a single outer jacket to streamline cable routing and lower installation labor.
95% High-Density Interference Shielding
Protected by a golden aluminum foil layer and a 96-strand CCA braid to block electromagnetic and radio-frequency interference (EMI/RFI) in noise-heavy commercial settings.
Integrated Low-Voltage Power Wiring
Includes dual 0.5mm² power conductors to supply 12V DC power to security cameras directly from a central power supply or DVR unit.

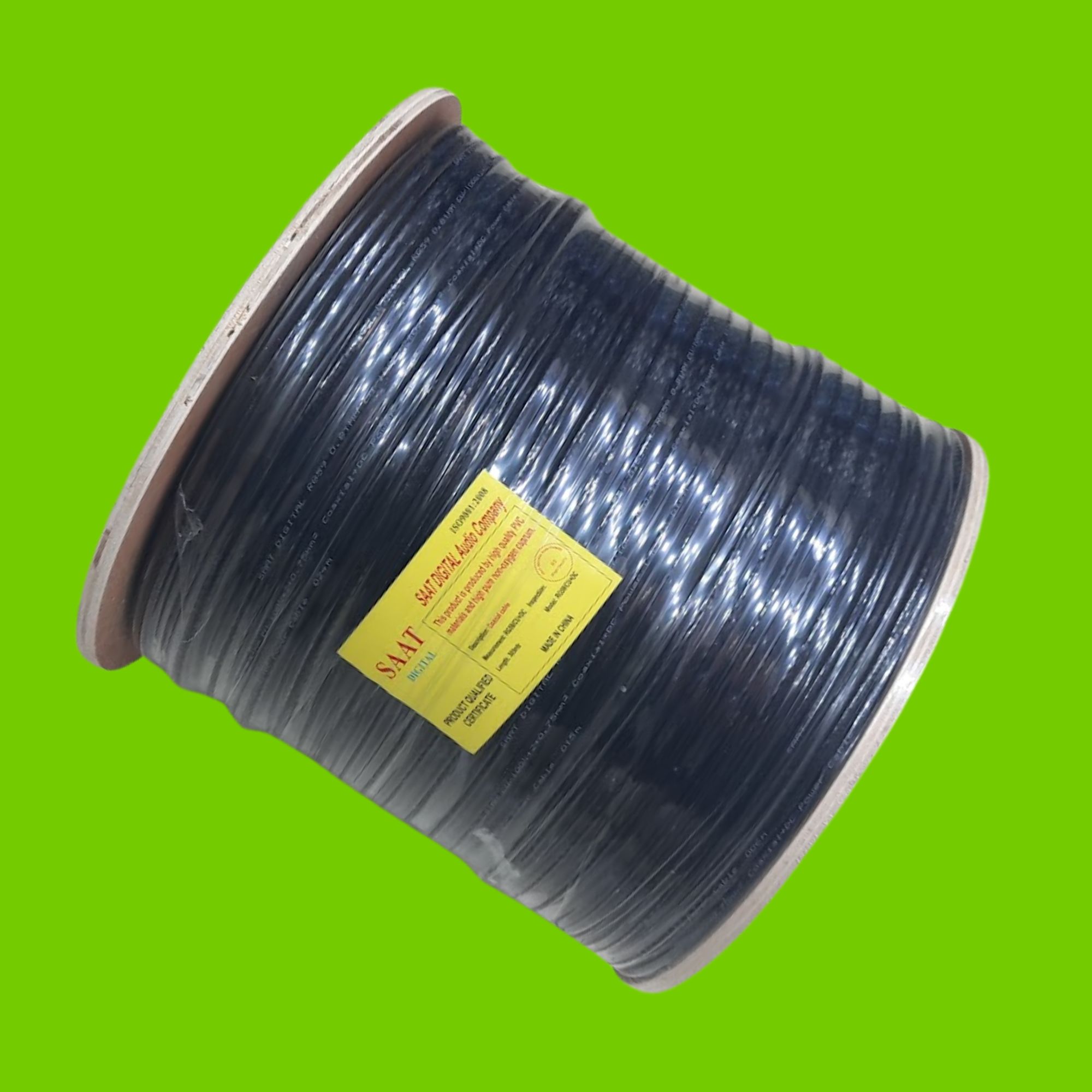

Durable 305m Reel-in-Box
Wrapped in a flexible 5.9mm PVC jacket, making it easy to pull through conduit, drop ceilings, and wall cavities during large-scale security system installations.
Technical Specifications
Specification PDF| Feature | Specification |
|---|---|
| Cable Type | RG59 Siamese (Coaxial Video + DC Power) |
| Coax Center Conductor | 0.81mm Bare Copper (100% CU) |
| Dielectric | 3.7mm FPE (Foam Polyethylene) |
| Shielding & Coverage | Golden Foil + 96-Strand CCA Braid (95% Coverage) |
| Power Wire Construction | 2x 0.5mm² CCA (Copper Clad Aluminum) |
| Outer Sheath | 5.9mm Flexible PVC (Black) |
| Roll Length | 305 Meters (1,000 Feet) |
| Impedance | 75 Ohms |
Applications
- High-Definition Security Installations – Optimized for HD-TVI, HD-CVI, AHD, and 4K CVBS analog security camera systems where maintaining signal integrity is critical.
- Long-Distance Camera Runs – Ideal for extended distance deployments in warehouses, high-rise buildings, parking structures, and large commercial spaces where CCS alternatives experience video degradation.
- Centralized CCTV Power Systems – Connects camera power leads directly to multi-channel CCTV power supply boxes at the central DVR room.
Package Contents
Safety & Compliance
Important Safety Instructions:
Warranty & Support
Warranty Information
Please contact us for warranty information specific to this product.
Customer Support
For support, please visit our Contact Us page.
Interested in this product?
Contact us for pricing, bulk orders, or technical specifications.
