VGA Splitter 1x4 350MHz

Easily duplicate one VGA video source to four displays simultaneously with high-resolution support and plug-and-play simplicity.

Product Images & Video

Video

Front view of VGA Splitter 1x4 350MHz

Key Features

1-to-4 Video Duplication

Splits a single VGA input signal to four identical VGA outputs, allowing multiple monitors or projectors to display the same content simultaneously.

High Resolution Support

Supports resolutions up to 1920x1024 (and mentions 1280x1024 and 1500x1200 in contexts), ensuring clear and detailed image quality for presentations, signage, or monitoring.

Fully Automatic Operation

Requires no external switches or software; automatically detects and distributes the signal upon connection.

Broad Compatibility

Works with all standard VGA sources (PCs, laptops, media players) and supports high-color-depth displays.

Extended Distance Support

Maintains signal quality for remote monitors up to 100 meters (328 feet) when used with appropriate cabling.

Technical Specifications

Specification	Details
Dimensions HxWxD (Unpacked / Packaged)	4.2 x 20 x 7.5 cm / 5.6 x 23.5 x 15.9 cm
Weight (Unpacked / Packaged)	780g / 870g
Material	Metal & Polymer.
Compatibility	VGA sources (PCs, laptops, DVD players) Monitors, projectors, and other VGA displays Supports 15-pin VGA, SVGA, XGA, and multi-frequency models
Power Supply	Includes an external power adapter. Input: 230V AC 50Hz Output: DC 9V 500mA

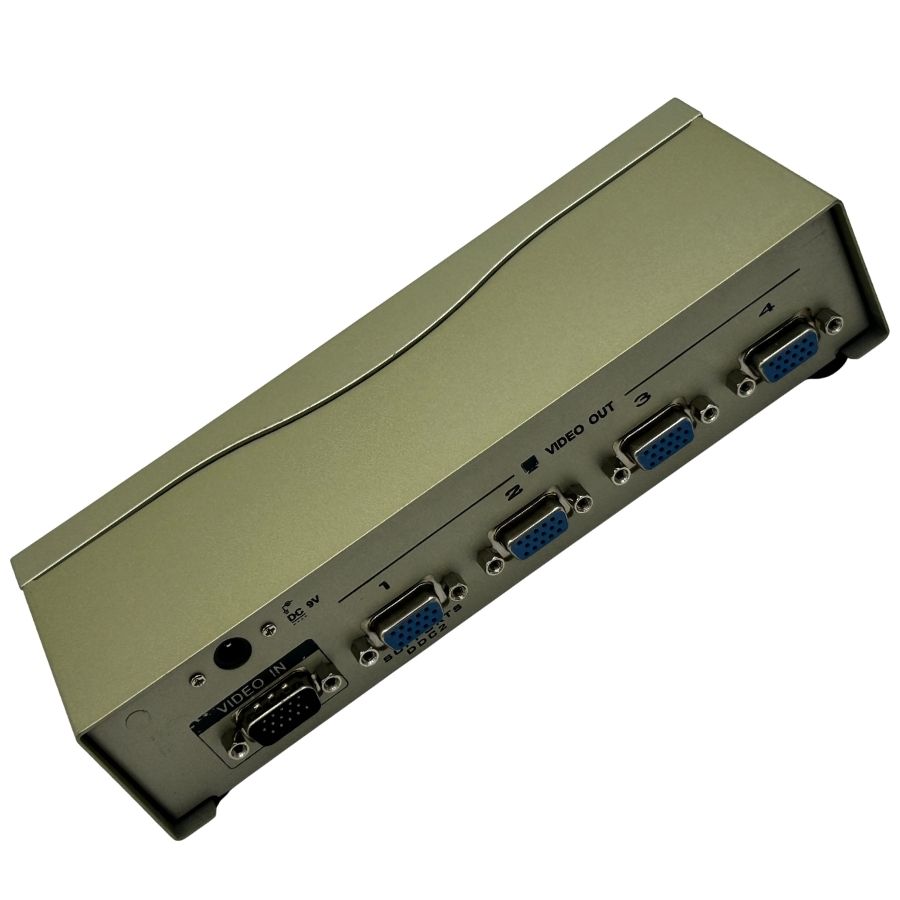

Interface/Ports	Input: 1 x VGA (15-pin female) Output: 4 x VGA (15-pin female)

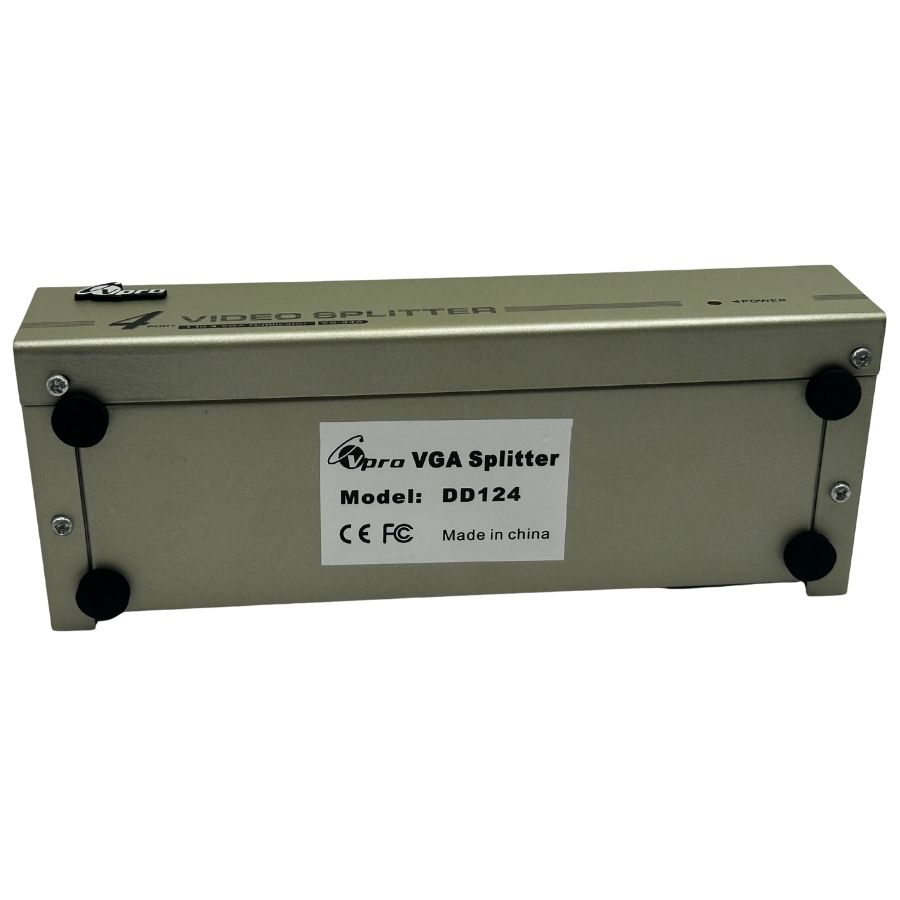

Certifications	CE and FCC Compliant.
Additional Specifications	Video bandwidth: 350 MHz (for 1-4 port model)Max. resolution: Up to 1920x1024 Fully automatic signal detection and distribution

Applications

Business Presentations and Training – Duplicate a laptop’s display to multiple monitors or projectors in conference rooms or training halls for collaborative viewing.
Digital Signage and Retail – Showcase promotions or information on multiple screens from a single media source in stores or public spaces.
Control Rooms and Security – Monitor the same video feed across several displays for surveillance or operational oversight.

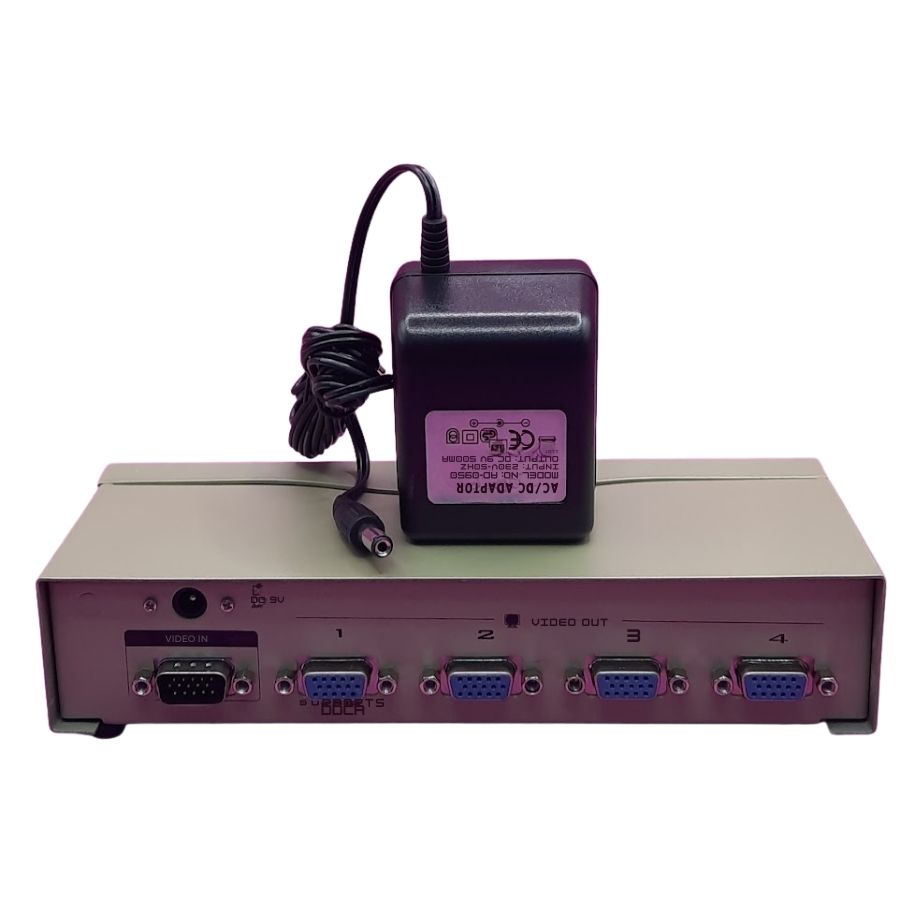

Package Contents

VGA Splitter 1x4 350MHz Main Unit
AC 230V, DC 9V/500mA Power Adapter

Safety & Compliance

Important Safety Instructions:

Avoid exposure to moisture; ensure proper ventilation during operation.
Use compatible cables and power sources if required.

Certifications:

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.

Interested in this product?

Request Quote
