Converters

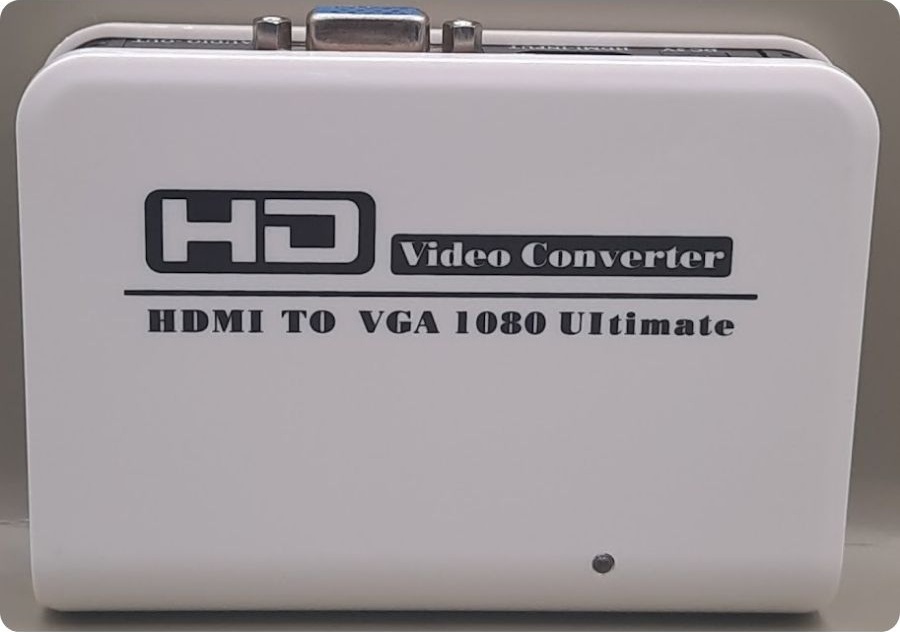

HDMI to VGA Converter (with Power)

Easily connect modern HDMI devices to legacy VGA monitors and projectors, extracting audio for a complete connectivity solution.

Product Images & Video

Video

Ports View

Key Features

Digital to Analog Signal Conversion

Converts digital HDMI signals from modern devices into analog VGA signals, enabling compatibility with older displays, projectors, and monitors that only have VGA input.

High-Definition Video Downscaling

Supports input resolutions up to 1920x1080@60Hz (1080p) and converts them to a compatible VGA output, ensuring the best possible picture quality on the analog display.

Separate Audio Extraction

Features a dedicated 3.5mm audio output port, which extracts the audio signal from the HDMI source. This allows you to connect speakers or headphones separately, as VGA does not carry audio.

Compact and Portable Design

The small, lightweight unit (170g) is highly portable, making it ideal for business travelers, presenters, and anyone who needs to connect devices on the go.

Technical Specifications

Specification	Details
Dimensions HxWxD (Packaged)	5.7x18.1x13.7 cm
Weight (Packaged)	260g
Compatibility	Modern devices with HDMI output (e.g., laptops, desktop PCs, Blu-ray players, gaming consoles); legacy displays with VGA input (e.g., monitors, projectors).
Power Supply	Requires external power via included DC 5V/1A AC adapter (Model: WS-0210, Input: 100-240V AC).
Interface/Ports	HDMI Input (Female) VGA Output (Female) 3.5mm Audio Output DC 5V Power Input
Cables	Not applicable (Adapter only; cables not included).
Additional Specifications	Supported Input Resolutions (HDMI): 480p, 720p, 1080i, 1080p @60Hz Supported Output Resolutions (VGA): 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@60Hz. Model Number: HV002

Applications

Business Presentations – Connect a modern laptop with only an HDMI port to an older VGA projector or conference room monitor commonly found in offices, schools, and hotels.
Dual Monitor Setup with Legacy Hardware – Add a secondary monitor to a modern computer setup by utilizing an old VGA monitor that would otherwise be incompatible, saving on costs.
Home Entertainment Connectivity – Connect HDMI devices like streaming sticks (Chromecast, Fire Stick) or modern gaming consoles to a VGA-only computer monitor or an older HDTV that lacks HDMI ports.

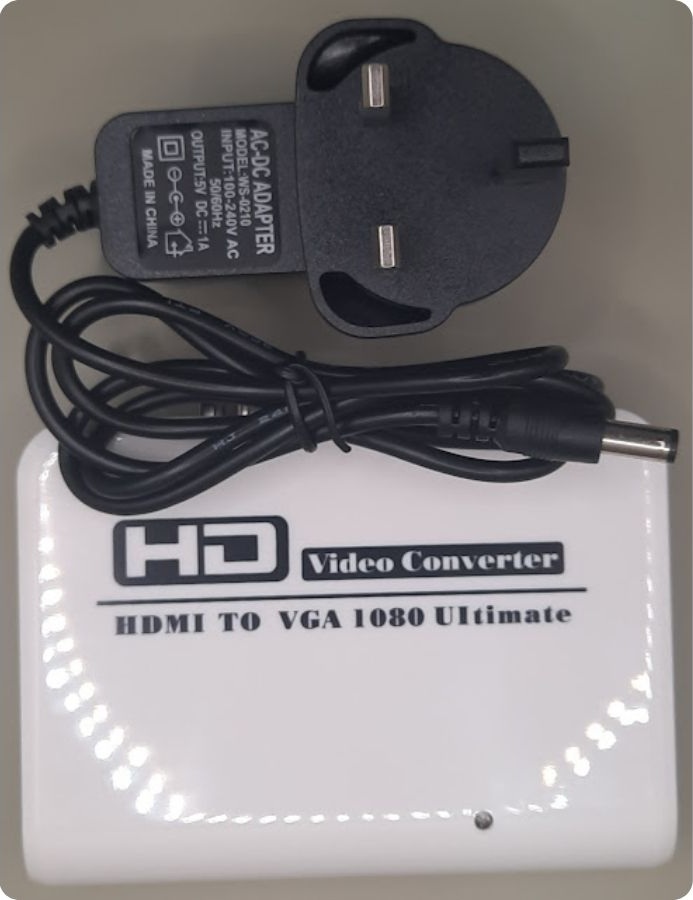

Package Contents

1x HDMI to VGA Converter main unit (Model: HV002).
1x DC 5V/1A AC Power Adapter (Model: WS-0210).

Safety & Compliance

Important Safety Instructions:

Use only the provided 5V DC power adapter.
Do not disassemble the unit.
Ensure all devices are powered off before making connections.
Keep away from water and heat sources.

Certifications:

CE (European Conformity)

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
